Stmicroelectronics
STM32F407ZGT6
High-performance foundation line, Arm Cortex-M4 core with DSP and FPU, 1 Mbyte of Flash memory, 168 MHz CPU, ART Accelerator, Ethernet, FSMC
PackageLQFP
Quick Jump:
Technical Specifications
Stmicroelectronics STM32F407ZGT6 technical specifications.
General
| Package/Case | LQFP |
| Core Architecture | ARM |
| Interface | I2C, SPI, USB, CAN, I2S, SDIO, UART, USART |
| Lead Free | Lead Free |
| Max Operating Temperature | 85°C |
| Memory Size | 1024KB |
| Memory Type | FLASH, |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 3.6V |
| Min Supply Voltage | 1.8V |
| Nominal Supply Current | 1.7uA |
| Number of Channels | 24 |
| Number of D/A Converters | 2 |
| Number of I/Os | 114 |
| Packaging | Tray |
| RAM Size | 192KB |
| RoHS Compliant | Yes |
| Series | STM32F407ZG |
| Weight | 0.045518oz |
Compliance
| RoHS | Compliant |
Datasheet
Stmicroelectronics STM32F407ZGT6 Datasheet
Download the complete datasheet for Stmicroelectronics STM32F407ZGT6 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

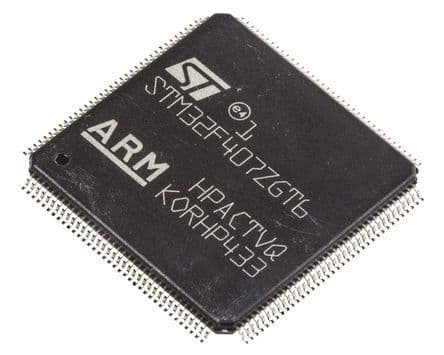

Product Images
