STMICROELECTRONICS

STM32F429VIT6

Datasheet

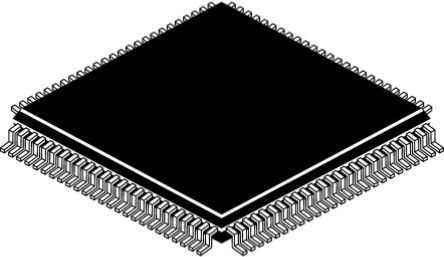

32-bit ARM Cortex-M4 MCU, 180MHz, 2MB Flash, 256KB RAM, LQFP

Stmicroelectronics

STM32F429VIT6

Name: STM32F429VIT6 Stmicroelectronics
Brand: Stmicroelectronics
SKU: STM32F429VIT6

32-bit ARM Cortex-M4 MCU, 180MHz, 2MB Flash, 256KB RAM, LQFP

32-bit ARM Cortex-M4 microcontroller featuring a 180MHz CPU with DSP and FPU capabilities. This MCU offers 2MB of FLASH memory and 256KB of RAM, supported by an ART Accelerator and Chrom-ART Accelerator for enhanced graphics. It includes extensive peripherals such as FSMC, TFT interface, 14 timers, 82 I/Os, 3 ADCs with 24 channels, 2 DACs, and multiple communication interfaces including I2C, SPI, USB, CAN, Ethernet, and UART. Operating from 1.8V to 3.6V, this RoHS compliant component is housed in an LQFP package.

Frequency180MHz

PackageLQFP

Quick Jump:

Technical Specifications

Stmicroelectronics STM32F429VIT6 technical specifications.

General

Package/Case	LQFP
Core Architecture	ARM
Data Bus Width	32b
Frequency	180MHz
Height	1.45mm
Interface	I2C, SPI, USB, CAN, IrDA, UART, USART, LIN, EBI/EMI, SDIO, Ethernet, I2S
Lead Free	Lead Free
Length	14.2mm
Max Frequency	180MHz
Max Operating Temperature	85°C
Max Power Dissipation	465mW
Max Supply Voltage	3.6V
Memory Size	2MB
Memory Type	FLASH,
Min Operating Temperature	-40°C
Min Supply Voltage	1.8V
Nominal Supply Current	1.7uA
Number of A/D Converters	3
Number of ADC Channels	24
Number of Channels	16
Number of D/A Converters	2
Number of Ethernet Channels	1
Number of I/Os	82
Number of I2C Channels	3
Number of Programmable I/O	82
Number of SPI Channels	6
Number of Timers/Counters	14
Number of UART Channels	4
Number of USB Channels	2
Oscillator Type	Internal
Package Quantity	540
Packaging	Tray
Peripherals	Brown-out Detect/Reset, POR, PWM, WDT, DMA, LCD
Radiation Hardening	No
RAM Size	256KB
Reach SVHC Compliant	No
RoHS Compliant	Yes
Series	STM32 F4
Watchdog Timer	Yes
Width	14.2mm
