Stmicroelectronics

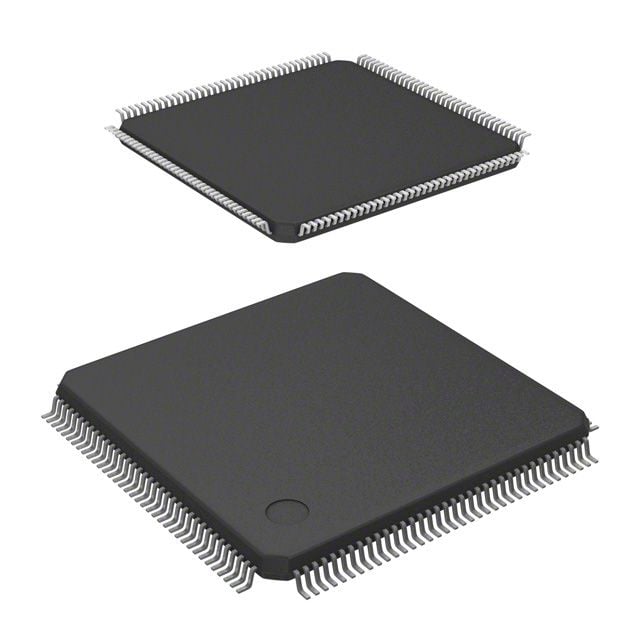

STM32F429ZGT6
High-performance advanced line, Arm Cortex-M4 core with DSP and FPU, 1 Mbyte of Flash memory, 180 MHz CPU, ART Accelerator, Chrom-ART Accelerator, FMC with SDRAM, TFT
Frequency180MHz
PackageLQFP
Quick Jump:
Technical Specifications
Stmicroelectronics STM32F429ZGT6 technical specifications.
General
Package/Case
LQFP
Core Architecture
ARM
Data Bus Width
32b
Interface
I2C, SPI, USB, CAN, UART, USART
Lead Free
Lead Free
Max Frequency
180MHz
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
3.6V
Memory Size
1024KB
Memory Type
FLASH,
Min Supply Voltage
1.8V
Number of ADC Channels
24
Number of I/Os
114
Number of Timers/Counters
14
Package Quantity
360
Packaging
Tray
RAM Size
260KB
RoHS Compliant
Yes
Series
STM32F429ZG
Weight
0.045518oz
Compliance
RoHS
Compliant
Datasheet
Stmicroelectronics STM32F429ZGT6 Datasheet
Download the complete datasheet for Stmicroelectronics STM32F429ZGT6 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
