32-bit Arm Cortex-M3 microcontroller featuring 32KB FLASH memory and 4KB RAM. Operates at up to 32MHz with an internal oscillator and supports I2C, SPI, USB, UART, and USART interfaces. Offers 37 programmable I/Os, 8 timers/counters, and peripherals including DMA, LCD, PWM, WDT, and Brown-out Detect. Encased in UFQFPN package, it functions within a 1.8V to 3.6V supply voltage range and operates from -40°C to 85°C. RoHS compliant.
Frequency32MHz
PackageUFQFPN
Quick Jump:
Technical Specifications
Stmicroelectronics STM32L100C6U6 technical specifications.
General
| Package/Case | UFQFPN |
| Core Architecture | ARM |
| Data Bus Width | 32b |
| Frequency | 32MHz |
| Interface | I2C, SPI, USB, UART, USART |
| Max Frequency | 32MHz |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 3.6V |
| Memory Size | 32KB |
| Memory Type | FLASH, |
| Min Supply Voltage | 1.8V |
| Number of I/Os | 37 |
| Number of Programmable I/O | 37 |
| Number of Timers/Counters | 8 |
| Oscillator Type | Internal |
| Package Quantity | 260 |
| Packaging | Tray |
| Peripherals | Brown-out Detect/Reset, POR, PWM, WDT, DMA, LCD |
| Radiation Hardening | No |
| RAM Size | 4KB |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | STM32 L1 |
| Watchdog Timer | Yes |
Compliance
| RoHS | Compliant |
Datasheet
Stmicroelectronics STM32L100C6U6 Datasheet
Download the complete datasheet for Stmicroelectronics STM32L100C6U6 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

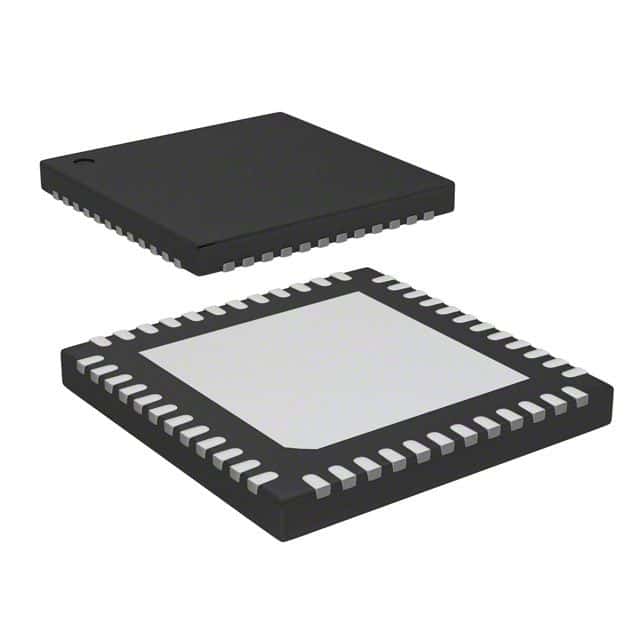

Product Images
