Ultra-low-power 32-bit Arm Cortex-M3 microcontroller featuring 128KB FLASH memory and 10KB RAM. Operates at up to 32MHz with 51 programmable I/Os. Integrated peripherals include I2C, SPI, USB, UART, USART, DMA, LCD controller, and 8 timers/counters. Supports a supply voltage range of 1.8V to 3.6V and operates from -40°C to 85°C. Available in LQFP package.
Frequency32MHz
PackageLQFP
Quick Jump:
Technical Specifications
Stmicroelectronics STM32L100RBT6 technical specifications.
General
Package/Case
LQFP
Core Architecture
ARM
Data Bus Width
32b
Frequency
32MHz
Interface
I2C, SPI, USB, UART, USART
Lead Free
Lead Free
Max Frequency
32MHz
Max Operating Temperature
85°C
Max Power Dissipation
444mW
Max Supply Voltage
3.6V
Memory Size
128KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Min Supply Voltage
1.8V
Number of I/Os
51
Number of Programmable I/O
51
Number of Timers/Counters
8
Oscillator Type
Internal
Package Quantity
160
Packaging
Tray
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, DMA, LCD
Radiation Hardening
No
RAM Size
10KB
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
STM32L1
Watchdog Timer
Yes
Compliance
RoHS
Compliant
Datasheet
Stmicroelectronics STM32L100RBT6 Datasheet
Download the complete datasheet for Stmicroelectronics STM32L100RBT6 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

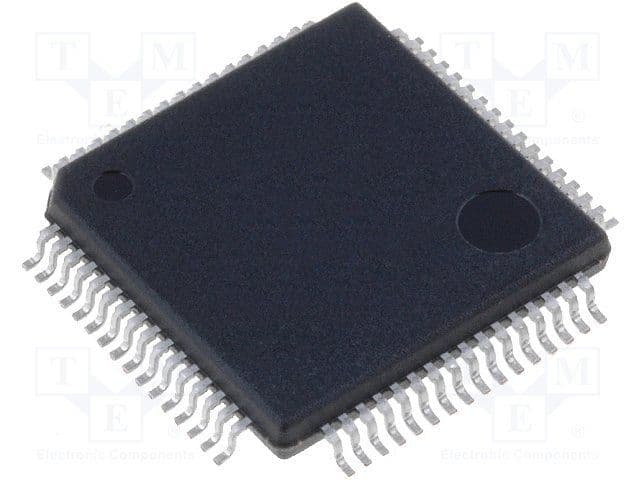

Product Images
