32-bit ARM Cortex-M3 microcontroller featuring 384KB FLASH memory and 48KB RAM. Operates at up to 32MHz with a 3.6V maximum supply voltage. Offers 51 programmable I/Os and supports I2C, SPI, USB, UART, and other interfaces. Includes 9 timers/counters, DMA, and watchdog timer functionality. Packaged in LQFP and designed for ultra-low-power applications.
Frequency32MHz
PackageLQFP
Quick Jump:
Technical Specifications
Stmicroelectronics STM32L151RDY6TR technical specifications.
General
Package/Case
LQFP
Core Architecture
ARM
Data Bus Width
32b
Frequency
32MHz
Interface
I2C, SPI, USB, IrDA, UART, USART, LIN, I2S
Max Frequency
32MHz
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Power Dissipation
290mW
Max Supply Voltage
3.6V
Memory Size
384KB
Memory Type
FLASH,
Min Supply Voltage
1.65V
Number of I/Os
51
Number of Programmable I/O
51
Number of Timers/Counters
9
Oscillator Type
Internal
Package Quantity
3000
Packaging
Tape and Reel
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, DMA
RAM Size
48KB
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
STM32 L1
Watchdog Timer
Yes
Compliance
RoHS
Compliant
Datasheet
Stmicroelectronics STM32L151RDY6TR Datasheet
Download the complete datasheet for Stmicroelectronics STM32L151RDY6TR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

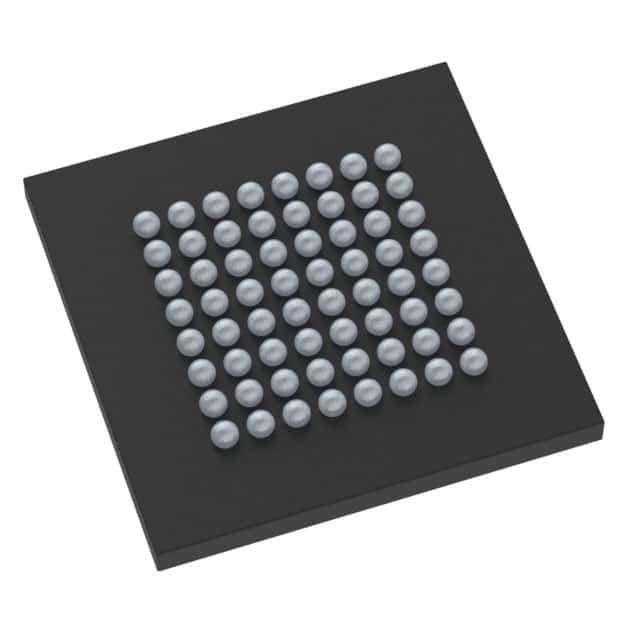

Product Images
