Ultra-low-power 32-bit Arm Cortex-M3 microcontroller featuring 512KB FLASH memory and 80KB RAM. Operates at up to 32MHz with 51 programmable I/Os. Integrated peripherals include I2C, SPI, USB, USART, IrDA, UART, LIN, I2S, 2 Op-amps, DMA, LCD controller, and 9 timers. Supports a wide operating voltage range of 1.65V to 3.6V and operates from -40°C to 85°C. Packaged in LQFP, this RoHS compliant MCU is designed for efficient, high-performance embedded applications.
Frequency32MHz
PackageLQFP
Quick Jump:
Technical Specifications
Stmicroelectronics STM32L151RET6 technical specifications.
General
| Package/Case | LQFP |
| Core Architecture | ARM |
| Data Bus Width | 32b |
| Frequency | 32MHz |
| Interface | I2C, SPI, USB, USART, IrDA, UART, LIN, I2S |
| Lead Free | Lead Free |
| Max Frequency | 32MHz |
| Max Operating Temperature | 85°C |
| Memory Size | 512KB |
| Memory Type | FLASH, |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 435mW |
| Max Supply Voltage | 3.6V |
| Min Supply Voltage | 1.65V |
| Number of ADC Channels | 21 |
| Number of I/Os | 51 |
| Number of Programmable I/O | 51 |
| Number of Timers/Counters | 9 |
| Oscillator Type | Internal |
| Package Quantity | 160 |
| Packaging | Tray |
| Peripherals | Brown-out Detect/Reset, POR, PWM, WDT, DMA, LCD |
| RAM Size | 80KB |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | STM32 L1 |
| Watchdog Timer | Yes |
| Weight | 0.012088oz |
Compliance
| RoHS | Compliant |
Datasheet
Stmicroelectronics STM32L151RET6 Datasheet
Download the complete datasheet for Stmicroelectronics STM32L151RET6 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

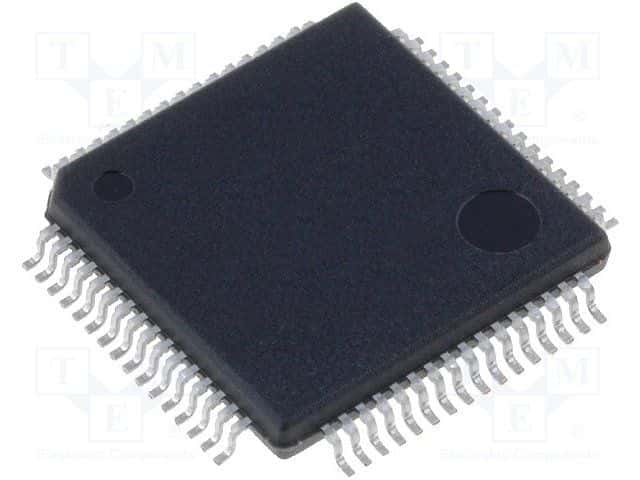

Product Images
