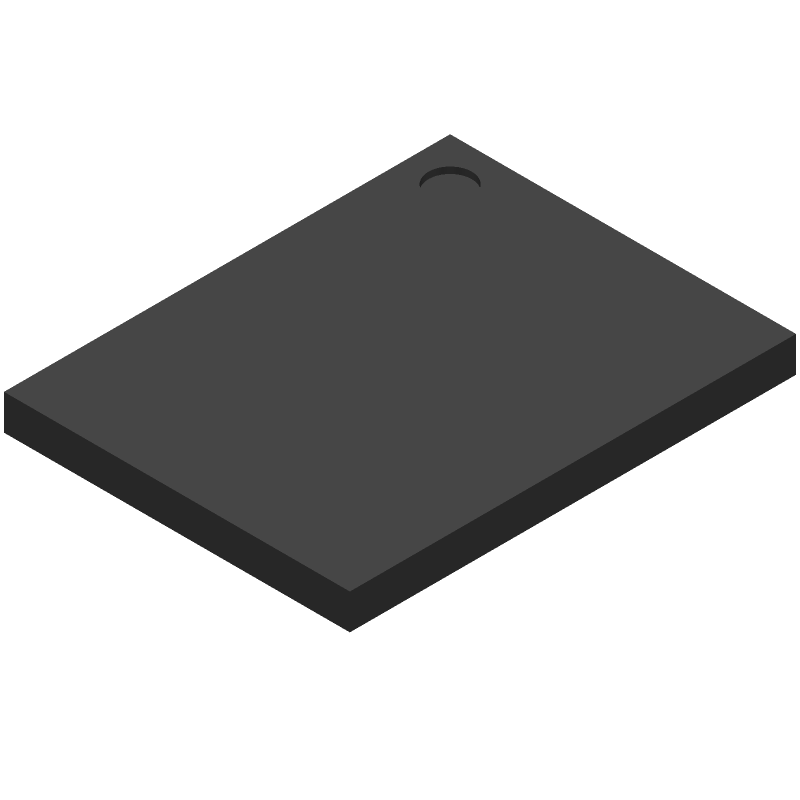

32-bit Arm Cortex-M3 RISC microcontroller featuring 256 KB Flash memory and 32 KB RAM. Operates at a maximum clock frequency of 32 MHz, with 51 I/O lines and 2 operational amplifiers. Supports USB connectivity, PWM channels, ADC, DAC, and DMA. Industrial temperature grade (-40°C to 85°C) with a 1.8V to 3.6V supply voltage range. Packaged in a 63-terminal R-PBGA-B63 with dimensions of 3.228mm width and 4.164mm length.
Frequency32
Quick Jump:
Technical Specifications
Stmicroelectronics STM32L151UCY6TR technical specifications.
General
Max Operating Temperature
85
Number of Terminals
63
Min Operating Temperature
-40
Terminal Position
BOTTOM
JEDEC Package Code
R-PBGA-B63
Width
3.228
Length
4.164
Temperature Grade
INDUSTRIAL
Supply Current-Max
12.3
Supply Voltage-Nom
3
Supply Voltage-Min
1.8
Supply Voltage-Max
3.6
Clock Frequency-Max
24
uPs/uCs/Peripheral ICs Type
MICROCONTROLLER, RISC
Number of I/O Lines
51
External Data Bus Width
0
Address Bus Width
0
Bit Size
32
Speed
32
ROM Programmability
FLASH
ROM (words)
262144
RAM (bytes)
32768
PWM Channels
YES
Has ADC
YES
DMA Channels
YES
DAC Channels
YES
Compliance
Eccn Code
3A991.A.2
REACH
Compliant
Military Spec
False
