32-bit ARM Cortex-M3 microcontroller featuring 512KB FLASH memory and 80KB RAM. Operates at up to 32MHz with extensive interfaces including I2C, SPI, USB, UART, and I2S. Includes 9 timers/counters, DMA, LCD controller, and 2 operational amplifiers. Offers 109 I/O pins and supports a wide operating temperature range of -40°C to 85°C. This lead-free, RoHS-compliant MCU is designed for ultra-low power consumption.
Frequency32MHz
Quick Jump:
Technical Specifications
Stmicroelectronics STM32L152QEH6 technical specifications.
General
Core Architecture
ARM
Data Bus Width
32b
Frequency
32MHz
Interface
I2C, SPI, USB, IrDA, UART, USART, I2S
Lead Free
Lead Free
Max Frequency
32MHz
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Power Dissipation
333mW
Max Supply Voltage
3.6V
Memory Size
512KB
Memory Type
FLASH,
Min Supply Voltage
1.65V
Number of I/Os
109
Number of Programmable I/O
109
Number of Timers/Counters
9
Oscillator Type
Internal
Package Quantity
416
Packaging
Tray
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, DMA, LCD
RAM Size
80KB
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
STM32L1
Watchdog Timer
Yes
Compliance
RoHS
Compliant
Datasheet
Stmicroelectronics STM32L152QEH6 Datasheet
Download the complete datasheet for Stmicroelectronics STM32L152QEH6 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

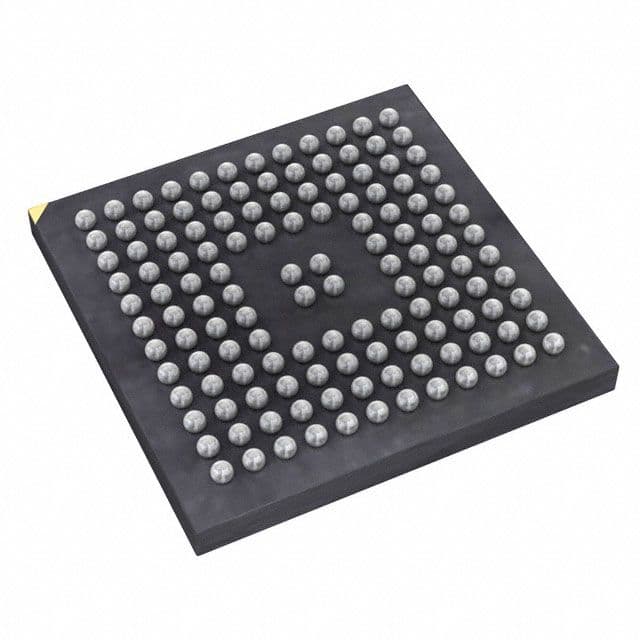

Product Images
