Stmicroelectronics
STM32L476JGY6TR

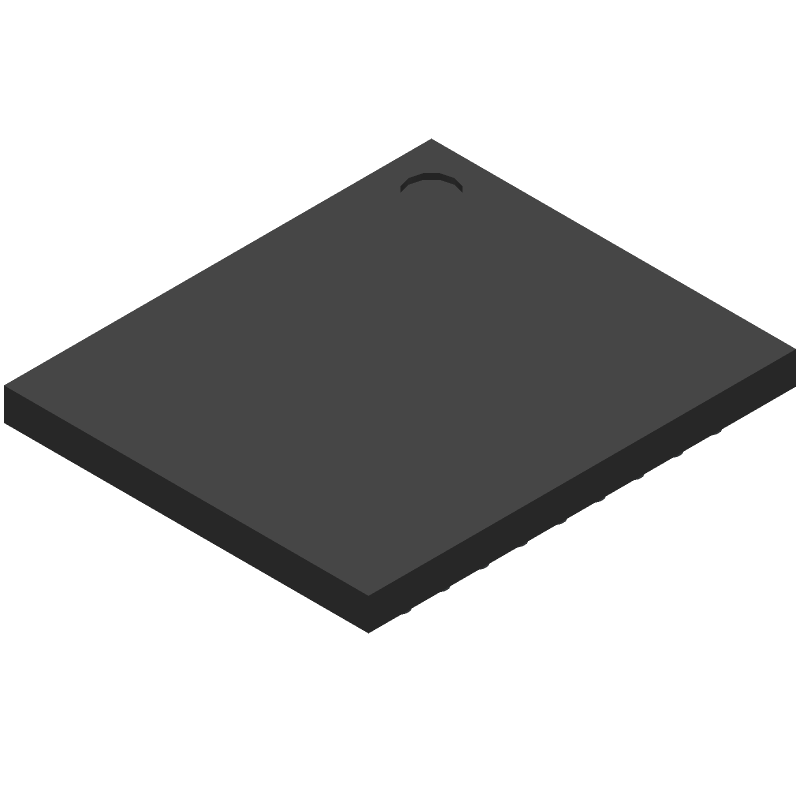

32-bit ARM Cortex-M4 MCU, 1MB Flash, 80MHz, LCD, USB OTG, 72-Pin BGA
32-bit RISC microcontroller featuring an Arm Cortex-M4 core with FPU, operating at up to 80 MHz. This ultra-low-power device offers 1 Mbyte of FLASH memory and 131 Kbytes of RAM, supporting 57 I/O lines. Includes LCD interface, USB OTG, and DFSDM peripherals, along with PWM, ADC, DMA, and DAC channels. Designed for industrial temperature ranges (-40°C to 85°C) with a 1.71V to 3.6V supply voltage, housed in a 72-terminal R-PBGA package.
Frequency80
Quick Jump:
Technical Specifications
Stmicroelectronics STM32L476JGY6TR technical specifications.
General
Max Operating Temperature
85
Number of Terminals
72
Min Operating Temperature
-40
Terminal Position
BOTTOM
JEDEC Package Code
R-PBGA-B72
Width
3.7594
Length
4.4084
Temperature Grade
INDUSTRIAL
Supply Voltage-Nom
1.8
Supply Voltage-Min
1.71
Supply Voltage-Max
3.6
Clock Frequency-Max
48
uPs/uCs/Peripheral ICs Type
MICROCONTROLLER, RISC
Number of I/O Lines
57
External Data Bus Width
0
Address Bus Width
2
Bit Size
32
Speed
80
ROM Programmability
FLASH
ROM (words)
1048576
RAM (bytes)
131072
PWM Channels
YES
Has ADC
YES
DMA Channels
YES
DAC Channels
YES
Compliance
Eccn Code
3A991.A.2
HTS Code
8542.31.00.01
REACH
Compliant
Military Spec
False
