Surface mountable, lead-free integrated circuit for power management. Features a single-element, simple reset/power-on reset type, monitoring one voltage with a reset threshold of 2.85V to 3V. Operates with a supply voltage range of 1V to 5.5V and a low supply current of 60µA. Offers an active low reset with a 140ms timeout and a maximum power dissipation of 320mW, suitable for operation between -40°C and 85°C.
PackageSO
Current60uA
MountingSurface Mount
Power320mW
Quick Jump:
Technical Specifications
Stmicroelectronics STM795SM6F technical specifications.
General
| Package/Case | SO |
| Lead Free | Lead Free |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 320mW |
| Max Reset Threshold Voltage | 3V |
| Min Reset Threshold Voltage | 2.85V |
| Max Supply Current | 60uA |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 1V |
| Mount | Surface Mount |
| Number of Elements | 1 |
| Number of Voltages Monitored | 1 |
| Operating Supply Current | 60uA |
| Overvoltage Threshold | 3V |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Power Dissipation | 320mW |
| Radiation Hardening | No |
| Reset | Active Low |
| Reset Timeout | 140ms |
| RoHS Compliant | Yes |
| Supply Current | 60uA |
| Threshold Voltage | 2.925V |
| Type | Simple Reset/Power-On Reset |
| Undervoltage Threshold | 2.85V |
| Watchdog Timer | No |
Compliance
| RoHS | Compliant |
Datasheet
Stmicroelectronics STM795SM6F Datasheet
Download the complete datasheet for Stmicroelectronics STM795SM6F to view detailed technical specifications.
No datasheet is available for this part.

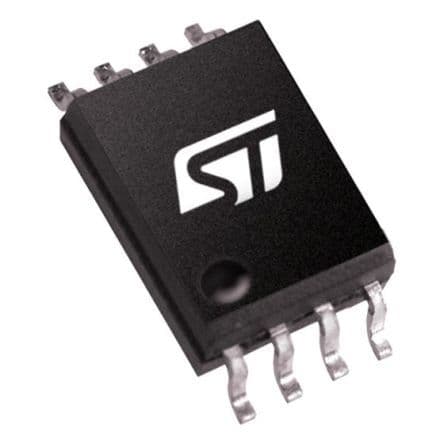

Product Images
