Ultra-low-power 8-bit microcontroller featuring 16 KB Flash memory and a 16 MHz CPU. This MCU offers 41 programmable I/Os, 4 timers/counters, and supports I2C, SPI, IrDA, UART, and USART interfaces. Operating from 1.8V to 3.6V, it includes integrated EEPROM, DMA, and a watchdog timer. Packaged in UFQFPN for surface mounting, it is RoHS compliant and operates across a -40°C to 85°C temperature range.
Frequency16MHz
PackageUFQFPN
MountingSurface Mount
Quick Jump:
Technical Specifications
Stmicroelectronics STM8L151C4U6 technical specifications.
General
Package/Case
UFQFPN
Data Bus Width
8b
Frequency
16MHz
Interface
I2C, SPI, IrDA, UART, USART
Lead Free
Lead Free
Max Frequency
16MHz
Max Operating Temperature
85°C
Max Supply Voltage
3.6V
Memory Size
16KB
Memory Type
FLASH, , ROM
Min Operating Temperature
-40°C
Min Supply Voltage
1.8V
Mount
Surface Mount
Number of I/Os
41
Number of Programmable I/O
41
Number of Timers/Counters
4
Oscillator Type
Internal
Package Quantity
260
Packaging
Tray
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, DMA
Radiation Hardening
No
RAM Size
2KB
RoHS Compliant
Yes
Series
STM8L EnergyLite
Watchdog Timer
Yes
Compliance
RoHS
Compliant
Datasheet
Stmicroelectronics STM8L151C4U6 Datasheet
Download the complete datasheet for Stmicroelectronics STM8L151C4U6 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

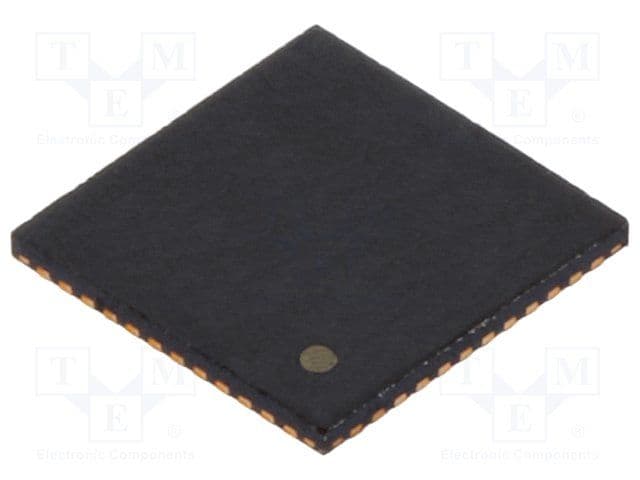

Product Images
