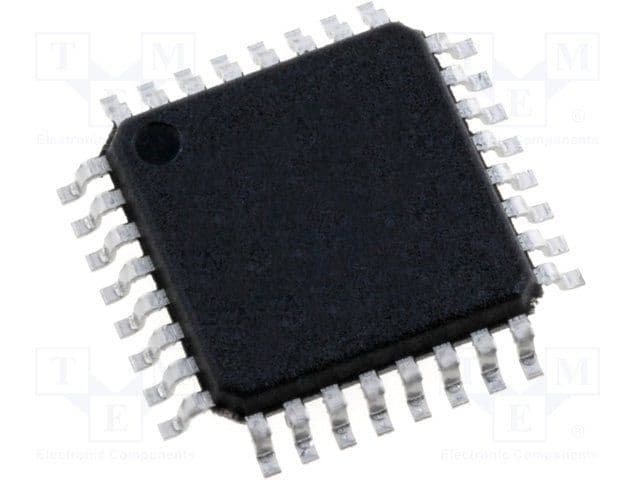

Ultra-low-power 8-bit microcontroller featuring 32 KB FLASH memory and 2 KB RAM. Operates at a CPU frequency of 16 MHz with a maximum of 16 MHz. Supports I2C, SPI, IrDA, UART, and USART interfaces. Offers 30 programmable I/O pins and 4 timers/counters. Operates from 1.8V to 3.6V supply voltage, with an operating temperature range of -40°C to 125°C. Packaged in LQFP for surface mounting.
Frequency16MHz
PackageLQFP
MountingSurface Mount
Quick Jump:
Technical Specifications
Stmicroelectronics STM8L151K6T3 technical specifications.
General
Package/Case
LQFP
Data Bus Width
8b
Frequency
16MHz
Interface
I2C, SPI, IrDA, UART, USART
Lead Free
Lead Free
Max Frequency
16MHz
Max Operating Temperature
125°C
Memory Size
32KB
Memory Type
FLASH, , ROM
Min Operating Temperature
-40°C
Max Supply Voltage
3.6V
Min Supply Voltage
1.8V
Mount
Surface Mount
Number of I/Os
30
Number of Programmable I/O
30
Number of Timers/Counters
4
Oscillator Type
Internal
Package Quantity
250
Packaging
Tray
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, DMA
Radiation Hardening
No
RAM Size
2KB
RoHS Compliant
Yes
Series
STM8L EnergyLite
Watchdog Timer
Yes
Compliance
RoHS
Compliant
Datasheet
Stmicroelectronics STM8L151K6T3 Datasheet
Download the complete datasheet for Stmicroelectronics STM8L151K6T3 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
