8-bit microcontroller (MCU) featuring a 24 MHz CPU and 64 KB of FLASH memory, complemented by 6 KB of RAM and integrated EEPROM. Offers 38 programmable I/O pins, 10 ADC channels, and multiple communication interfaces including I2C, SPI, UART, USART, LIN, and IrDA. Operates from 2.95V to 5.5V within a -40°C to 85°C temperature range, with peripherals like Brown-out Detect, POR, PWM, and a Watchdog Timer. This surface mount device is housed in an LQFP package.
Frequency24MHz
PackageLQFP
MountingSurface Mount
Quick Jump:
Technical Specifications
Stmicroelectronics STM8S007C8T6 technical specifications.
General
Package/Case
LQFP
Data Bus Width
8b
Frequency
24MHz
Height
1.45mm
Interface
I2C, SPI, IrDA, UART, USART, LIN
Lead Free
Lead Free
Length
7.2mm
Max Frequency
24MHz
Max Operating Temperature
85°C
Max Power Dissipation
443mW
Max Supply Voltage
5.5V
Memory Size
64KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Min Supply Voltage
2.95V
Mount
Surface Mount
Number of ADC Channels
10
Number of I/Os
38
Number of I2C Channels
1
Number of Programmable I/O
38
Number of PWM Channels
5
Number of SPI Channels
1
Number of Timers/Counters
9
Number of UART Channels
2
Oscillator Type
Internal
Packaging
Tray
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT
Radiation Hardening
No
RAM Size
6KB
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
STM8S
Watchdog Timer
Yes
Width
7.2mm
Compliance
RoHS
Compliant
Datasheet
Stmicroelectronics STM8S007C8T6 Datasheet
Download the complete datasheet for Stmicroelectronics STM8S007C8T6 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

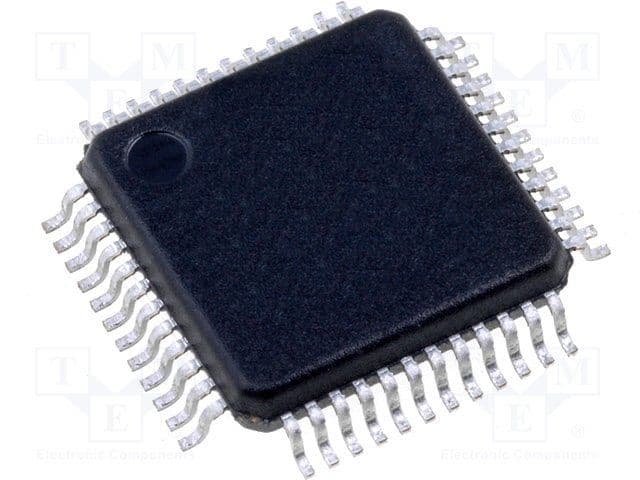

Product Images
