8-bit microcontroller featuring 8KB Flash memory and a 16MHz CPU. This surface-mount TSSOP package offers 16 programmable I/Os, 7 timers/counters, and an internal oscillator. Integrated peripherals include I2C, SPI, UART, USART, LIN interfaces, Brown-out Detect/Reset, POR, PWM, and a Watchdog Timer. Operating from 2.95V to 5.5V, it supports a maximum power dissipation of 238mW and operates between -40°C and 85°C.
Frequency16MHz
PackageTSSOP
MountingSurface Mount
Quick Jump:
Technical Specifications
Stmicroelectronics STM8S103F3P6TR technical specifications.
General
Package/Case
TSSOP
Data Bus Width
8b
Frequency
16MHz
Interface
I2C, SPI, IrDA, UART, USART, LIN
Lead Free
Lead Free
Max Frequency
16MHz
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Power Dissipation
238mW
Max Supply Voltage
5.5V
Memory Size
8KB
Memory Type
FLASH,
Min Supply Voltage
2.95V
Mount
Surface Mount
Number of I/Os
16
Number of Programmable I/O
16
Number of Timers/Counters
7
Oscillator Type
Internal
Package Quantity
2500
Packaging
Tape and Reel
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT
Radiation Hardening
No
RAM Size
1KB
RoHS Compliant
Yes
Series
STM8S
Watchdog Timer
Yes
Compliance
RoHS
Compliant
Datasheet
Stmicroelectronics STM8S103F3P6TR Datasheet
Download the complete datasheet for Stmicroelectronics STM8S103F3P6TR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

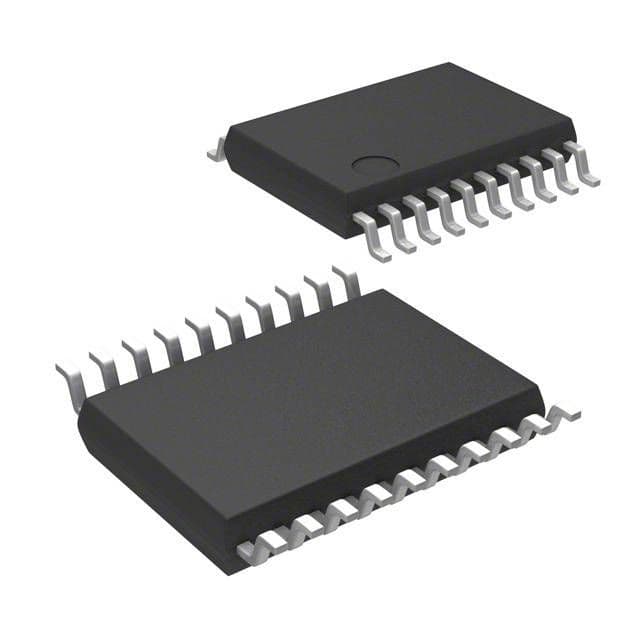

Product Images
