8-bit microcontroller featuring 32KB Flash memory and 6KB RAM, operating at a 24MHz CPU frequency. Supports I2C, SPI, CAN, IrDA, UART, USART, and LIN interfaces, with 16 ADC channels and 38 programmable I/Os. Includes 4 PWM channels, 9 timers/counters, and integrated EEPROM, with peripherals like Brown-out Detect, POR, and Watchdog Timer. Designed for surface mount installation in an LQFP package, with an operating temperature range of -40°C to 125°C and a maximum supply voltage of 5.5V.
Frequency24MHz
PackageLQFP
MountingSurface Mount
Quick Jump:
Technical Specifications
Stmicroelectronics STM8S208C6T3 technical specifications.
General
Package/Case
LQFP
Data Bus Width
8b
Frequency
24MHz
Height
1.45mm
Interface
I2C, SPI, CAN, IrDA, UART, USART, LIN
Length
7.2mm
Max Frequency
24MHz
Max Operating Temperature
125°C
Max Power Dissipation
443mW
Max Supply Voltage
5.5V
Memory Size
32KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Min Supply Voltage
2.95V
Mount
Surface Mount
Number of ADC Channels
16
Number of I/Os
38
Number of I2C Channels
1
Number of Programmable I/O
38
Number of PWM Channels
4
Number of SPI Channels
1
Number of Timers/Counters
9
Number of UART Channels
2
Oscillator Type
Internal
Package Quantity
250
Packaging
Tray
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT
Radiation Hardening
No
RAM Size
6KB
RoHS Compliant
Yes
Series
STM8S
Watchdog Timer
Yes
Width
7.2mm
Compliance
RoHS
Compliant
Datasheet
Stmicroelectronics STM8S208C6T3 Datasheet
Download the complete datasheet for Stmicroelectronics STM8S208C6T3 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

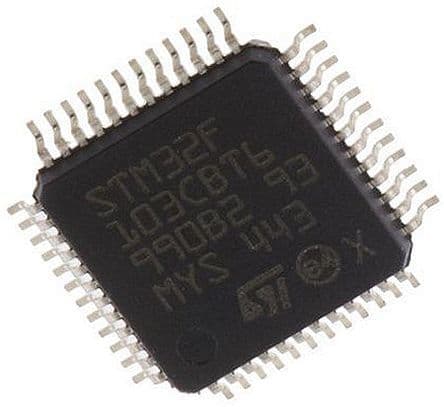

Product Images
