Stmicroelectronics
STMPS2151STR
5.5V 500mA Single Channel Power Switch, SOT-23, Overtemp/Rev Curr Prot
Single channel power switch IC, surface mount SOT-23 package. Features 500mA maximum output current with 90mR on-state resistance. Operates from 2.7V to 5.5V supply voltage. Includes over-temperature and reverse current fault protection. Low 40uA supply current and 125°C maximum operating temperature.
PackageSOT-23
Voltage5.5V
Current500mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Stmicroelectronics STMPS2151STR technical specifications.
General
Package/Case
SOT-23
Current
500mA
Drain to Source Resistance
90mR
Fault Protection
Over Temperature, Reverse Current
Height
1.3mm
Interface
On/Off
Lead Free
Lead Free
Length
3mm
Max Input Voltage
5.5V
Min Input Voltage
2.7V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
500mA
Max Power Dissipation
32.5mW
Max Supply Current
40uA
Max Supply Voltage
5.5V
Min Supply Voltage
2.7V
Mount
Surface Mount
Nominal Input Voltage
5V
Number of Channels
1
Number of Inputs
1
Number of Outputs
1
On-State Resistance
90mR
On-state Resistance-Max
130MR
Operating Supply Voltage
5.5V
Output Configuration
High Side
Output Current
0A
Output Voltage
5V
Package Quantity
3000
Packaging
Tape and Reel
Power Dissipation
32.5mW
Radiation Hardening
No
Rated Current-Max
500mA
Reach SVHC Compliant
No
RoHS Compliant
Yes
Supply Current
40uA
Voltage
5.5V
Width
1.75mm
Compliance
RoHS
Compliant
Datasheet
Stmicroelectronics STMPS2151STR Datasheet
Download the complete datasheet for Stmicroelectronics STMPS2151STR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

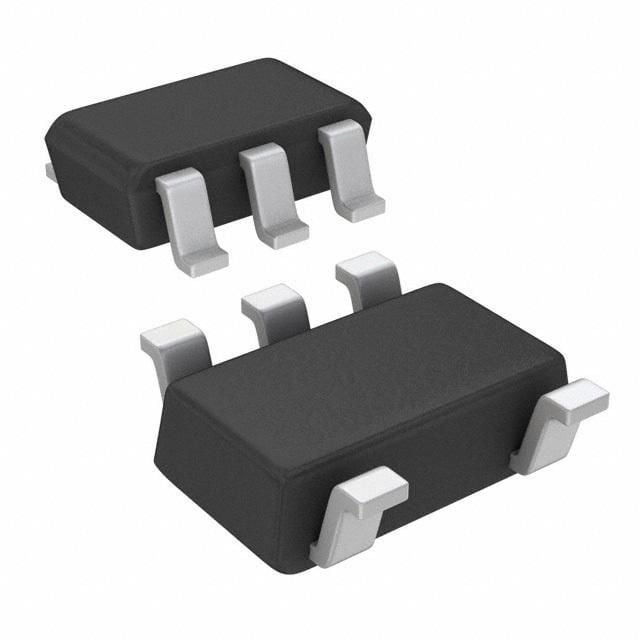

Product Images
