8-channel LED driver IC featuring a 30MHz switching frequency and 20V output voltage. Delivers 100mA output current per channel, with a maximum supply current of 13.5mA. Operates from a 3V to 5.5V supply voltage and is housed in a 16-pin TSSOP surface-mount package. Suitable for applications requiring precise LED control within a -40°C to 125°C temperature range.
Frequency30MHz
PackageTSSOP
Current13.5mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Stmicroelectronics STP08DP05XTTR technical specifications.
General
Package/Case
TSSOP
Frequency
30MHz
High Level Output Current
1mA
Lead Free
Lead Free
Low Level Output Current
-1mA
Max Input Voltage
5.5V
Min Input Voltage
3V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Supply Current
13.5mA
Max Supply Voltage
5.5V
Min Supply Voltage
3V
Mount
Surface Mount
Number of LEDs
1
Number of Outputs
8
Output Current
100mA
Output Current per Channel
100mA
Output Voltage
20V
Package Quantity
2500
Packaging
Tape and Reel
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Supply Current
13.5mA
Switching Frequency-Max
30MHz
Compliance
RoHS
Compliant
Datasheet
Stmicroelectronics STP08DP05XTTR Datasheet
Download the complete datasheet for Stmicroelectronics STP08DP05XTTR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

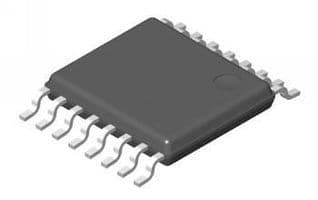

Product Images
