Stmicroelectronics
STP160N3LL
N-channel 30 V, 2.5 mOhm typ., 120 A, STripFET H6 Power MOSFET in a TO-220 package
PackageTO-220
MountingThrough Hole
Quick Jump:
Technical Specifications
Stmicroelectronics STP160N3LL technical specifications.
General
Package/Case
TO-220
Continuous Drain Current (ID)
120A
Drain to Source Voltage (Vdss)
30V
Input Capacitance
3.5nF
Max Operating Temperature
175°C
Min Operating Temperature
-55°C
Max Power Dissipation
136W
Mount
Through Hole
Packaging
Rail/Tube
Rds On Max
3.2mR
RoHS Compliant
Yes
Series
STripFET™ H6
Compliance
RoHS
Compliant
Datasheet
Stmicroelectronics STP160N3LL Datasheet
Download the complete datasheet for Stmicroelectronics STP160N3LL to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

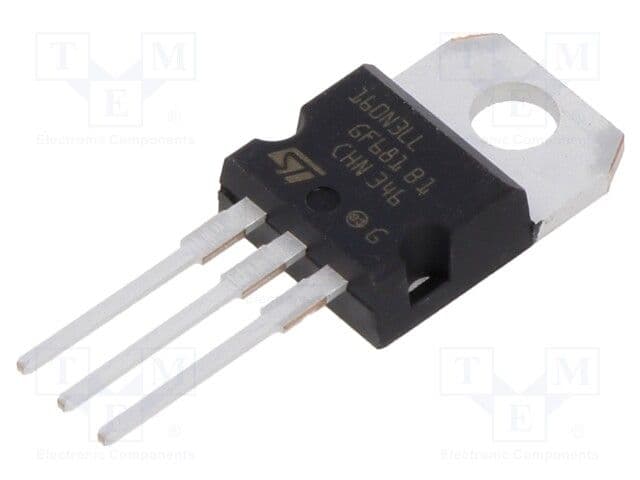

Product Images
