PackageTO-220AB
Current Rating4A
MountingThrough Hole
PolarityN-CHANNEL
Quick Jump:
Technical Specifications
Stmicroelectronics STP4NB80 technical specifications.
General
Package/Case
TO-220AB
Continuous Drain Current (ID)
4A
Current Rating
4A
Drain to Source Breakdown Voltage
800V
Drain to Source Resistance
3.3R
Drain to Source Voltage (Vdss)
800V
Fall Time
9ns
Gate to Source Voltage (Vgs)
30V
Input Capacitance
920pF
Lead Free
Contains Lead
Max Operating Temperature
150°C
Min Operating Temperature
-65°C
Max Power Dissipation
100W
Mount
Through Hole
Package Quantity
50
Packaging
Rail/Tube
Polarity
N-CHANNEL
Power Dissipation
100W
Rds On Max
3.3R
RoHS Compliant
Yes
Series
PowerMESH™
DC Rated Voltage
800V
Compliance
RoHS
Compliant
Datasheet
Stmicroelectronics STP4NB80 Datasheet
Download the complete datasheet for Stmicroelectronics STP4NB80 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

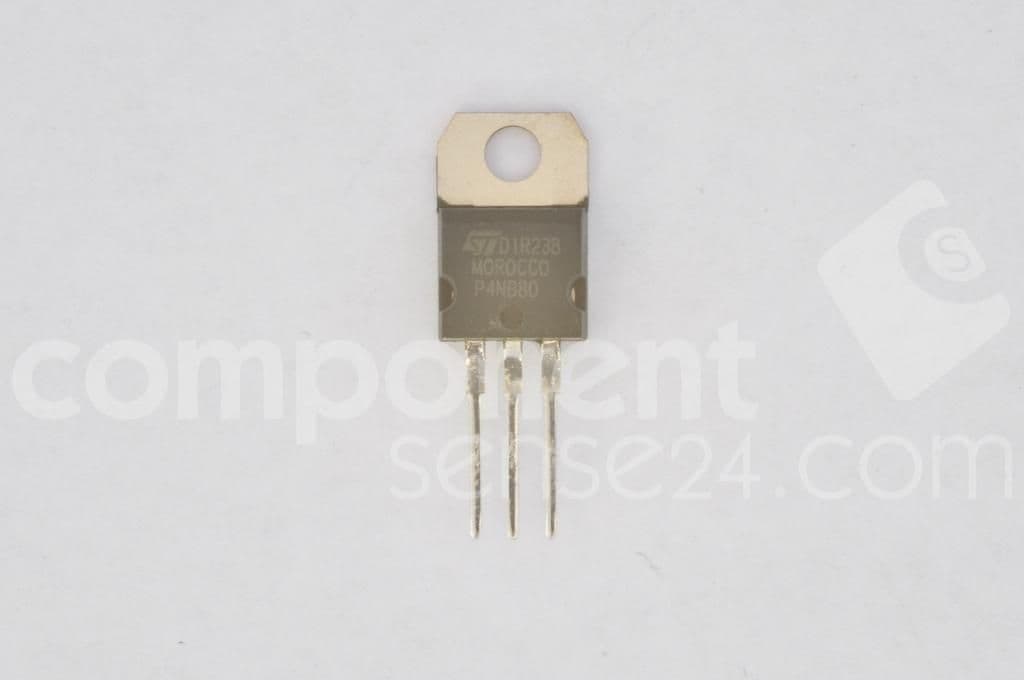

Product Images
