10A Power Schottky Rectifier, TO-220AC package, featuring a 45V repetitive reverse voltage and 10A average rectified current. This through-hole component offers a maximum forward surge current of 180A and operates within a temperature range of -65°C to 175°C. It is RoHS compliant and lead-free.
PackageTO-220AC
Current Rating10A
MountingThrough Hole
PolarityStandard
Quick Jump:
Technical Specifications
Stmicroelectronics STPS1045D technical specifications.
General
Average Rectified Current
10A
Package/Case
TO-220AC
Current Rating
10A
Forward Current
10A
Height
9.15mm
Lead Free
Lead Free
Length
10.4mm
Max Forward Surge Current (Ifsm)
180A
Max Operating Temperature
175°C
Min Operating Temperature
-65°C
Max Repetitive Reverse Voltage (Vrrm)
45V
Max Reverse Current
100uA
Max Reverse Leakage Current
100uA
Max Reverse Voltage (DC)
45V
Max Surge Current
180A
Mount
Through Hole
Output Current
10A
Package Quantity
50
Packaging
Rail/Tube
Peak Non-Repetitive Surge Current
180A
Polarity
Standard
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
DC Rated Voltage
45V
Width
4.6mm
Compliance
RoHS
Compliant
Datasheet
Stmicroelectronics STPS1045D Datasheet
Download the complete datasheet for Stmicroelectronics STPS1045D to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

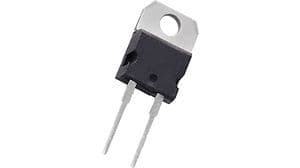

Product Images
