1A Surface Mount Power Schottky Rectifier, featuring a 40V repetitive reverse voltage rating. This component offers a 1A average rectified current and a 60A peak non-repetitive surge current. Operating across a wide temperature range from -65°C to 150°C, it is housed in a compact SMA package with dimensions of 4.6mm length, 2.95mm width, and 2.03mm height. RoHS compliant and lead-free, this rectifier is supplied on tape and reel.
PackageSMA
Current Rating1A
MountingSurface Mount
PolarityStandard
Quick Jump:
Technical Specifications
Stmicroelectronics STPS140A technical specifications.
General
Average Rectified Current
1A
Package/Case
SMA
Current Rating
1A
Forward Current
1A
Height
2.03mm
Lead Free
Lead Free
Length
4.6mm
Max Forward Surge Current (Ifsm)
60A
Max Operating Temperature
150°C
Min Operating Temperature
-65°C
Max Repetitive Reverse Voltage (Vrrm)
40V
Max Reverse Current
12uA
Max Reverse Leakage Current
12uA
Max Reverse Voltage (DC)
40V
Max Surge Current
60A
Mount
Surface Mount
Output Current
1A
Package Quantity
5000
Packaging
Tape and Reel
Peak Non-Repetitive Surge Current
60A
Polarity
Standard
Power Dissipation
900W
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
DC Rated Voltage
40V
Width
2.95mm
Compliance
RoHS
Compliant
Datasheet
Stmicroelectronics STPS140A Datasheet
Download the complete datasheet for Stmicroelectronics STPS140A to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

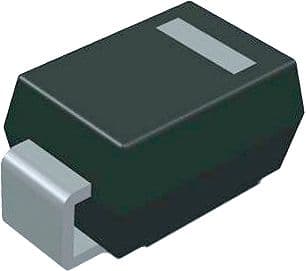

Product Images
