Dual low drop power Schottky rectifier with a 25V repetitive reverse voltage rating. Features a 20A current rating and 10A average rectified current. Designed for through-hole mounting in a TO-220AB package, operating from -65°C to 150°C. Includes a maximum forward surge current of 220A and is RoHS compliant.
PackageTO-220AB
Current Rating20A
MountingThrough Hole
Quick Jump:
Technical Specifications
Stmicroelectronics STPS20L25CT technical specifications.
General
| Average Rectified Current | 10A |
| Package/Case | TO-220AB |
| Current Rating | 20A |
| Forward Current | 10A |
| Height | 15.75mm |
| Lead Free | Lead Free |
| Length | 10.4mm |
| Max Forward Surge Current (Ifsm) | 220A |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -65°C |
| Max Repetitive Reverse Voltage (Vrrm) | 25V |
| Max Reverse Current | 800uA |
| Max Reverse Leakage Current | 800uA |
| Max Reverse Voltage (DC) | 25V |
| Max Surge Current | 220A |
| Mount | Through Hole |
| Package Quantity | 50 |
| Packaging | Rail/Tube |
| Peak Non-Repetitive Surge Current | 220A |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| DC Rated Voltage | 25V |
| Width | 4.6mm |
Compliance
| RoHS | Compliant |
Datasheet
Stmicroelectronics STPS20L25CT Datasheet
Download the complete datasheet for Stmicroelectronics STPS20L25CT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

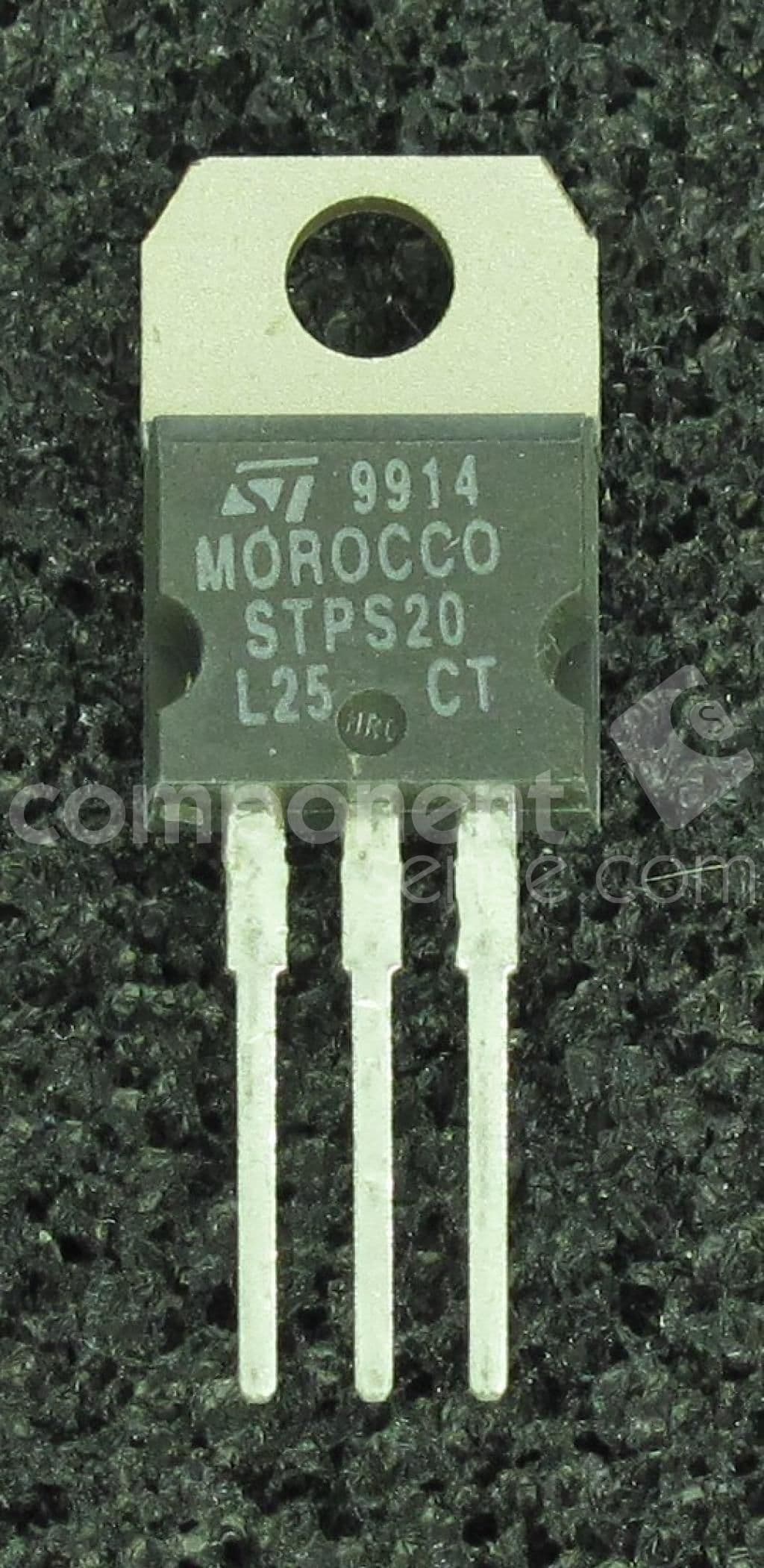

Product Images
