20A, 100V surface mount Schottky rectifier in a D2PAK package. Features a maximum forward current of 20A, a maximum repetitive reverse voltage of 100V, and a maximum reverse leakage current of 40µA. Operates across a temperature range of -65°C to 150°C, with a peak non-repetitive surge current capability of 530A. This RoHS compliant component is designed for general-purpose rectification.
PackageD2PAK
MountingSurface Mount
Quick Jump:
Technical Specifications
Stmicroelectronics STPS20M100SG-TR technical specifications.
General
Average Rectified Current
20A
Package/Case
D2PAK
Forward Current
20A
Height
4.6mm
Lead Free
Lead Free
Length
10.4mm
Max Forward Surge Current (Ifsm)
530A
Max Operating Temperature
150°C
Min Operating Temperature
-65°C
Max Repetitive Reverse Voltage (Vrrm)
100V
Max Reverse Current
40uA
Max Reverse Leakage Current
40uA
Max Reverse Voltage (DC)
100V
Max Surge Current
530A
Mount
Surface Mount
Package Quantity
1
Packaging
Tape and Reel
Peak Non-Repetitive Surge Current
530A
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Width
9.35mm
Compliance
RoHS
Compliant
Datasheet
Stmicroelectronics STPS20M100SG-TR Datasheet
Download the complete datasheet for Stmicroelectronics STPS20M100SG-TR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

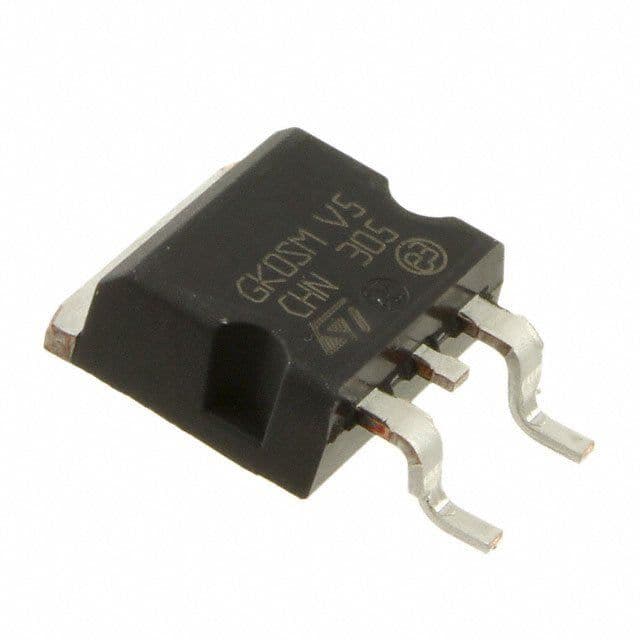

Product Images
