PackageTO-220AC
MountingThrough Hole
Quick Jump:
Technical Specifications
Stmicroelectronics STPS20M60D technical specifications.
General
Average Rectified Current
20A
Package/Case
TO-220AC
Forward Current
20A
Lead Free
Lead Free
Max Forward Surge Current (Ifsm)
400A
Max Operating Temperature
150°C
Min Operating Temperature
-65°C
Max Repetitive Reverse Voltage (Vrrm)
60V
Max Reverse Current
125uA
Max Reverse Voltage (DC)
60V
Mount
Through Hole
Packaging
Rail/Tube
Peak Non-Repetitive Surge Current
400A
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Compliance
RoHS
Compliant
Datasheet
Stmicroelectronics STPS20M60D Datasheet
Download the complete datasheet for Stmicroelectronics STPS20M60D to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

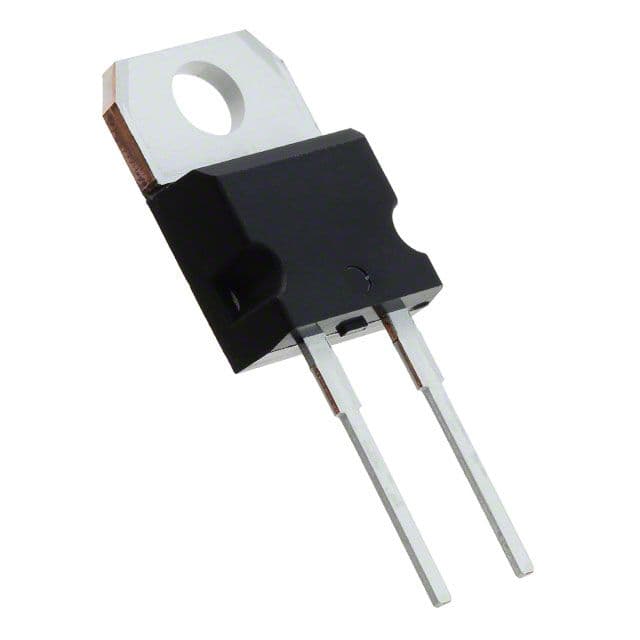

Product Images
