High voltage power Schottky rectifier with 100V repetitive reverse voltage and 2A average rectified current. Features a 2A forward current rating and 75A peak non-repetitive surge current. Operates from -65°C to 175°C, with a maximum reverse leakage current of 1uA. Packaged in a DO-41 through-hole mount with lead-free and RoHS compliant construction.
PackageDO-41
Current Rating2A
MountingThrough Hole
PolarityStandard
Quick Jump:
Technical Specifications
Stmicroelectronics STPS2H100 technical specifications.
General
Average Rectified Current
2A
Package/Case
DO-41
Current Rating
2A
Forward Current
2A
Height
2.71mm
Lead Free
Lead Free
Length
5.2mm
Max Forward Surge Current (Ifsm)
75A
Max Operating Temperature
175°C
Min Operating Temperature
-65°C
Max Repetitive Reverse Voltage (Vrrm)
100V
Max Reverse Current
1uA
Max Reverse Leakage Current
1uA
Max Reverse Voltage (DC)
100V
Max Surge Current
50A
Mount
Through Hole
Output Current
2A
Package Quantity
1
Packaging
Ammo Pack
Peak Non-Repetitive Surge Current
75A
Polarity
Standard
Radiation Hardening
No
RoHS Compliant
Yes
DC Rated Voltage
100V
Width
2.71mm
Compliance
RoHS
Compliant
Datasheet
Stmicroelectronics STPS2H100 Datasheet
Download the complete datasheet for Stmicroelectronics STPS2H100 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

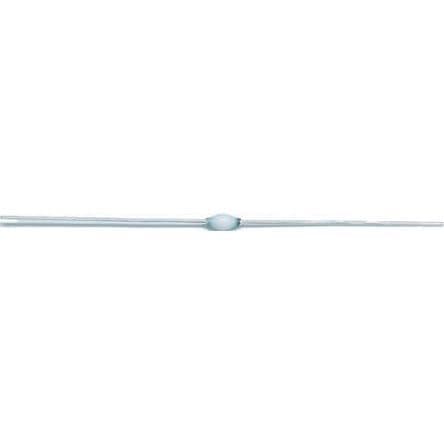

Product Images
