Schottky rectifier diode with a 60V repetitive reverse voltage (Vrrm) and 2A average rectified current. Features a 2A forward current, 75A maximum surge current, and 100µA maximum reverse leakage current. Packaged in a DO-214AC (SMA) surface mount case with dimensions of 4.6mm length, 2.95mm width, and 2.03mm height. Operates across a temperature range of -65°C to 150°C and is RoHS compliant.
PackageDO-214AC
Current Rating2A
MountingSurface Mount
PolarityStandard
Quick Jump:
Technical Specifications
Stmicroelectronics STPS2L60A technical specifications.
General
Average Rectified Current
2A
Package/Case
DO-214AC
Current Rating
2A
Forward Current
2A
Height
2.03mm
Lead Free
Lead Free
Length
4.6mm
Max Forward Surge Current (Ifsm)
75A
Max Operating Temperature
150°C
Min Operating Temperature
-65°C
Max Repetitive Reverse Voltage (Vrrm)
60V
Max Reverse Current
100uA
Max Reverse Leakage Current
100uA
Max Reverse Voltage (DC)
60V
Max Surge Current
75A
Mount
Surface Mount
Output Current
2A
Package Quantity
5000
Packaging
Tape and Reel
Peak Non-Repetitive Surge Current
75A
Polarity
Standard
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
DC Rated Voltage
60V
Width
2.95mm
Compliance
RoHS
Compliant
Datasheet
Stmicroelectronics STPS2L60A Datasheet
Download the complete datasheet for Stmicroelectronics STPS2L60A to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

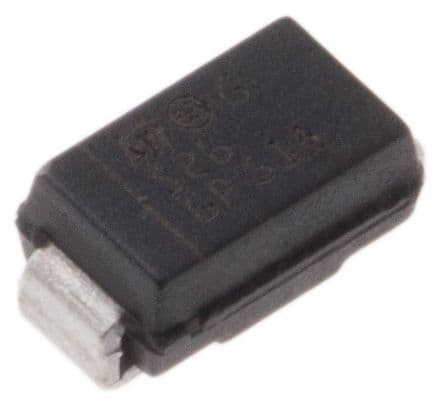

Product Images
