PackageTO-247-3
Current Rating30A
MountingThrough Hole, Radial
Quick Jump:
Technical Specifications
Stmicroelectronics STPS30H60CW technical specifications.
General
Average Rectified Current
15A
Package/Case
TO-247-3
Current Rating
30A
Forward Current
30A
Lead Free
Lead Free
Max Operating Temperature
175°C
Min Operating Temperature
-65°C
Max Repetitive Reverse Voltage (Vrrm)
60V
Max Reverse Current
60uA
Max Reverse Leakage Current
60uA
Max Reverse Voltage (DC)
60V
Max Surge Current
230A
Mount
Through Hole, Radial
Package Quantity
30
Packaging
Rail/Tube
Peak Non-Repetitive Surge Current
230A
Radiation Hardening
No
RoHS Compliant
Yes
DC Rated Voltage
60V
Compliance
RoHS
Compliant
Datasheet
Stmicroelectronics STPS30H60CW Datasheet
Download the complete datasheet for Stmicroelectronics STPS30H60CW to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

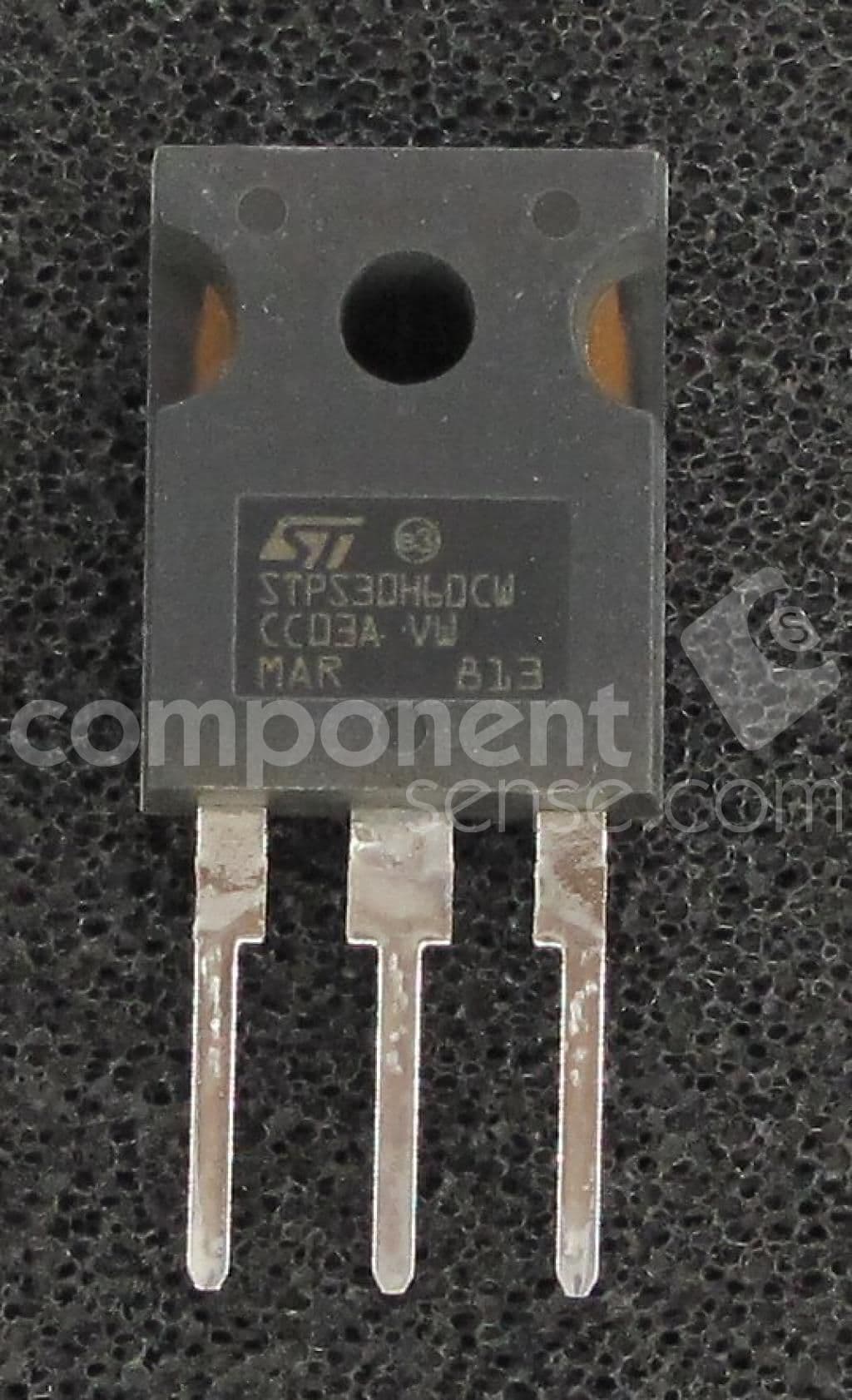

Product Images
