3A Surface Mount Power Schottky Rectifier with a 150V repetitive reverse voltage rating. Features a 3A average rectified current and a 100A maximum forward surge current. Operates across a wide temperature range from -65°C to 175°C. Packaged in SMB, this RoHS compliant component is supplied on tape and reel.
PackageSMB
Current Rating3A
MountingSurface Mount
PolarityStandard
Quick Jump:
Technical Specifications
Stmicroelectronics STPS3150U technical specifications.
General
Average Rectified Current
3A
Package/Case
SMB
Current Rating
3A
Forward Current
3A
Height
2.45mm
Lead Free
Lead Free
Length
4.6mm
Max Forward Surge Current (Ifsm)
100A
Max Operating Temperature
175°C
Min Operating Temperature
-65°C
Max Repetitive Reverse Voltage (Vrrm)
150V
Max Reverse Current
2uA
Max Reverse Leakage Current
2uA
Max Reverse Voltage (DC)
150V
Max Surge Current
100A
Mount
Surface Mount
Output Current
3A
Package Quantity
2500
Packaging
Tape and Reel
Peak Non-Repetitive Surge Current
80A
Polarity
Standard
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
DC Rated Voltage
150V
Width
3.95mm
Compliance
RoHS
Compliant
Datasheet
Stmicroelectronics STPS3150U Datasheet
Download the complete datasheet for Stmicroelectronics STPS3150U to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

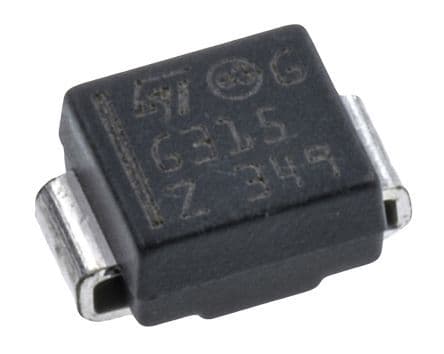

Product Images
