3A SMD Power Schottky rectifier with a 40V repetitive reverse voltage rating. Features a maximum operating temperature of 150°C and a minimum of -65°C. Offers a 75A peak non-repetitive surge current capability and a low reverse leakage current of 20uA. Surface mount component supplied on tape and reel, RoHS compliant.
MountingSurface Mount
Quick Jump:
Technical Specifications
Stmicroelectronics STPS340UF technical specifications.
General
Average Rectified Current
3A
Forward Current
3A
Max Operating Temperature
150°C
Min Operating Temperature
-65°C
Max Repetitive Reverse Voltage (Vrrm)
40V
Max Reverse Current
20uA
Max Reverse Leakage Current
20uA
Max Reverse Voltage (DC)
40V
Max Surge Current
75A
Mount
Surface Mount
Package Quantity
1
Packaging
Tape and Reel
Peak Non-Repetitive Surge Current
75A
Radiation Hardening
No
RoHS Compliant
Yes
Compliance
RoHS
Compliant
Datasheet
Stmicroelectronics STPS340UF Datasheet
Download the complete datasheet for Stmicroelectronics STPS340UF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

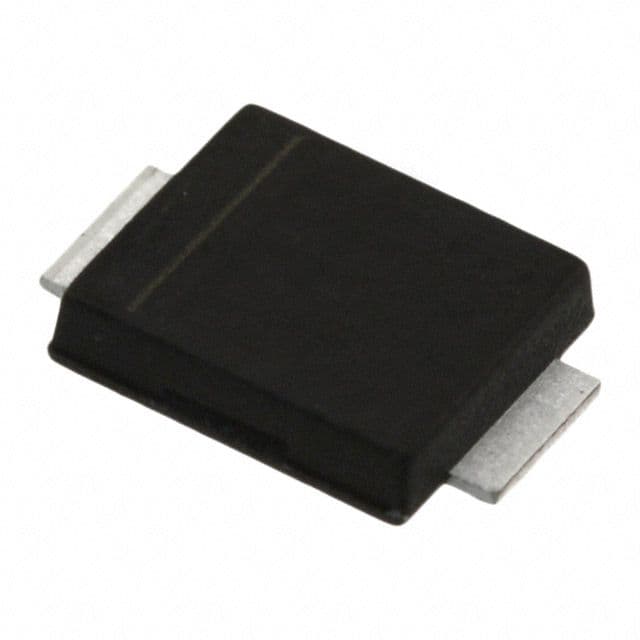

Product Images
