Surface mount general purpose rectifier with 60V repetitive reverse voltage and 5A average rectified current. Features a low forward voltage drop, 150A peak non-repetitive surge current capability, and a maximum operating temperature of 150°C. Packaged in SMC for efficient heat dissipation. RoHS compliant and lead-free.
PackageSMC
MountingSurface Mount
Quick Jump:
Technical Specifications
Stmicroelectronics STPS5L60S technical specifications.
General
Average Rectified Current
5A
Package/Case
SMC
Forward Current
5A
Height
2.45mm
Lead Free
Lead Free
Length
7.15mm
Max Forward Surge Current (Ifsm)
150A
Max Operating Temperature
150°C
Min Operating Temperature
-65°C
Max Repetitive Reverse Voltage (Vrrm)
60V
Max Reverse Current
220uA
Max Reverse Leakage Current
220uA
Max Reverse Voltage (DC)
60V
Max Surge Current
150A
Mount
Surface Mount
Packaging
Tape and Reel
Peak Non-Repetitive Surge Current
150A
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Width
6.25mm
Compliance
RoHS
Compliant
Datasheet
Stmicroelectronics STPS5L60S Datasheet
Download the complete datasheet for Stmicroelectronics STPS5L60S to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

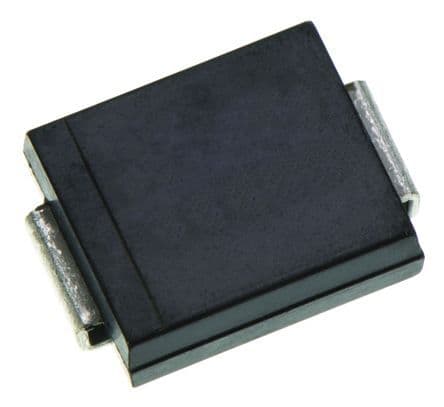

Product Images
