8A Surface Mount Power Schottky Rectifier with a maximum repetitive reverse voltage of 170V. Features a 1.05mm height, 3.4mm length, and 3.4mm width in an SMD/SMT package. Offers a maximum forward surge current of 100A and operates from -65°C to 175°C. This RoHS compliant component is designed for general-purpose rectification.
PackageSMD/SMT
MountingSurface Mount
Quick Jump:
Technical Specifications
Stmicroelectronics STPS8170DEE-TR technical specifications.
General
Average Rectified Current
8A
Package/Case
SMD/SMT
Forward Current
8A
Height
1.05mm
Lead Free
Lead Free
Length
3.4mm
Max Forward Surge Current (Ifsm)
100A
Max Operating Temperature
175°C
Min Operating Temperature
-65°C
Max Repetitive Reverse Voltage (Vrrm)
170V
Max Reverse Current
15uA
Max Reverse Leakage Current
15uA
Max Reverse Voltage (DC)
170V
Max Surge Current
100A
Mount
Surface Mount
Packaging
Tape and Reel
Peak Non-Repetitive Surge Current
100A
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Width
3.4mm
Compliance
RoHS
Compliant
Datasheet
Stmicroelectronics STPS8170DEE-TR Datasheet
Download the complete datasheet for Stmicroelectronics STPS8170DEE-TR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

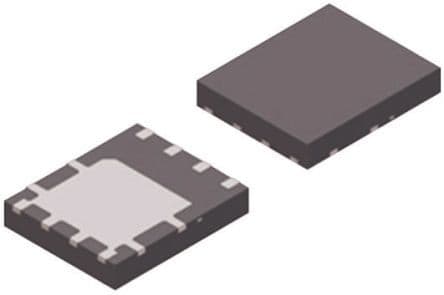

Product Images
