8A Power Schottky rectifier, TO-220AC package, featuring 100V repetitive reverse voltage and 8A average rectified current. This through-hole mount component offers a maximum forward surge current of 250A and operates from -65°C to 175°C. It is RoHS compliant and lead-free.
PackageTO-220AC
Current Rating8A
MountingThrough Hole
PolarityStandard
Quick Jump:
Technical Specifications
Stmicroelectronics STPS8H100D technical specifications.
General
Average Rectified Current
8A
Package/Case
TO-220AC
Current Rating
8A
Forward Current
8A
Height
9.3mm
Lead Free
Lead Free
Length
10.4mm
Max Forward Surge Current (Ifsm)
250A
Max Operating Temperature
175°C
Min Operating Temperature
-65°C
Max Repetitive Reverse Voltage (Vrrm)
100V
Max Reverse Current
4.5uA
Max Reverse Leakage Current
4.5uA
Max Reverse Voltage (DC)
100V
Max Surge Current
250A
Mount
Through Hole
Output Current
8A
Package Quantity
50
Packaging
Rail/Tube
Peak Non-Repetitive Surge Current
250A
Polarity
Standard
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
DC Rated Voltage
100V
Width
4.6mm
Compliance
RoHS
Compliant
Datasheet
Stmicroelectronics STPS8H100D Datasheet
Download the complete datasheet for Stmicroelectronics STPS8H100D to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

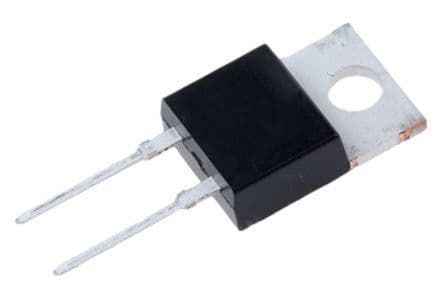

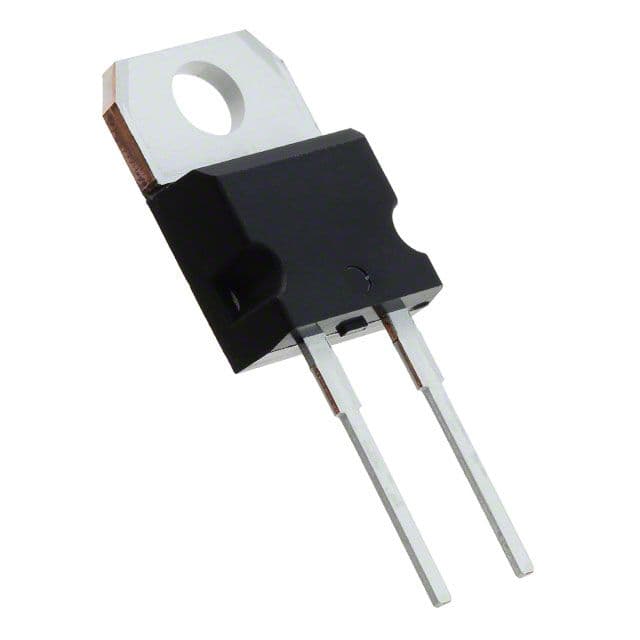

Product Images
