Surface mount power Schottky rectifier with 100V repetitive peak reverse voltage and 8A average rectified current. Features a D2PAK package, 250A peak non-repetitive surge current, and a maximum operating temperature of 175°C. This lead-free, RoHS compliant component offers a low reverse current of 4.5µA.
PackageD2PAK
Current Rating8A
MountingSurface Mount
PolarityStandard
Quick Jump:
Technical Specifications
Stmicroelectronics STPS8H100G-TR technical specifications.
General
Average Rectified Current
8A
Package/Case
D2PAK
Current Rating
8A
Forward Current
8A
Height
4.6mm
Lead Free
Lead Free
Length
10.4mm
Max Forward Surge Current (Ifsm)
250A
Max Operating Temperature
175°C
Min Operating Temperature
-65°C
Max Repetitive Reverse Voltage (Vrrm)
100V
Max Reverse Current
4.5uA
Max Reverse Voltage (DC)
100V
Mount
Surface Mount
Output Current
8A
Package Quantity
1000
Packaging
Tape and Reel
Peak Non-Repetitive Surge Current
250A
Polarity
Standard
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
DC Rated Voltage
100V
Width
9.35mm
Compliance
RoHS
Compliant
Datasheet
Stmicroelectronics STPS8H100G-TR Datasheet
Download the complete datasheet for Stmicroelectronics STPS8H100G-TR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

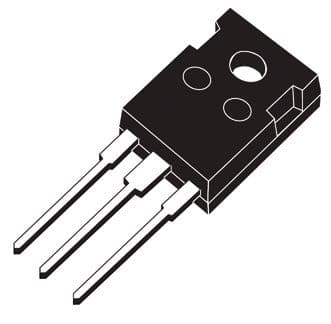

Product Images
