32-bit ARM microcontroller featuring a 96MHz core frequency and 512KB FLASH memory. This surface mount LFBGA package offers 96KB RAM, 80 I/Os, and supports I2C, SPI, USB, Ethernet, IrDA, SSP, UART, USART, EBI/EMI, and CAN interfaces. Operating from 2.7V to 3.6V, it includes peripherals like Brown-out Detect, POR, PWM, WDT, and DMA, with an internal oscillator.
Frequency96MHz
PackageLFBGA
MountingSurface Mount
Quick Jump:
Technical Specifications
Stmicroelectronics STR912FAZ44H6 technical specifications.
General
Package/Case
LFBGA
Core Architecture
ARM
Data Bus Width
16b
Frequency
96MHz
Interface
I2C, SPI, USB, Ethernet, IrDA, SSP, UART, USART, EBI/EMI, CAN
Lead Free
Lead Free
Length
10mm
Max Frequency
96MHz
Max Operating Temperature
85°C
Max Supply Voltage
3.6V
Memory Size
512KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Min Supply Voltage
2.7V
Mount
Surface Mount
Number of I/Os
80
Number of Programmable I/O
80
Number of Timers/Counters
4
Oscillator Type
Internal
Package Quantity
184
Packaging
Tray
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, DMA
Radiation Hardening
No
RAM Size
96KB
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
STR9
Compliance
RoHS
Compliant
Datasheet
Stmicroelectronics STR912FAZ44H6 Datasheet
Download the complete datasheet for Stmicroelectronics STR912FAZ44H6 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

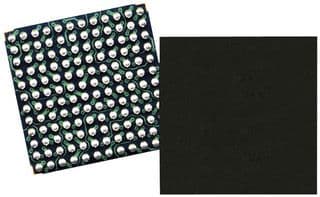

Product Images
