The STTA406RL is a general purpose rectifier with a maximum operating temperature of 125°C and a minimum operating temperature of -40°C. It has a maximum reverse voltage of 600V and a maximum surge current of 80A. The device is packaged in a DO-201AD package and is available in a tape and reel format. The STTA406RL is RoHS compliant and features a reverse recovery time of 55ns.
PackageDO-201AD
Current Rating4A
MountingThrough Hole
PolarityStandard
Quick Jump:
Technical Specifications
Stmicroelectronics STTA406RL technical specifications.
General
| Average Rectified Current | 4A |
| Package/Case | DO-201AD |
| Current Rating | 4A |
| Lead Free | Lead Free |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Reverse Current | 50uA |
| Max Reverse Voltage (DC) | 600V |
| Max Surge Current | 80A |
| Mount | Through Hole |
| Output Current | 4A |
| Package Quantity | 1900 |
| Packaging | Tape and Reel |
| Polarity | Standard |
| Reverse Recovery Time | 55ns |
| Reverse Voltage | 600V |
| RoHS Compliant | Yes |
| Series | TURBOSWITCH™ |
| DC Rated Voltage | 600V |
Compliance
| RoHS | Compliant |
Datasheet
Stmicroelectronics STTA406RL Datasheet
Download the complete datasheet for Stmicroelectronics STTA406RL to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

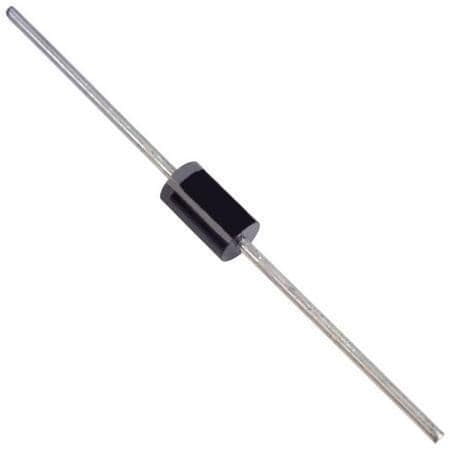

Product Images
