High-performance ultrafast diode module featuring a 200V repetitive reverse voltage and 100A current rating. Delivers 50A average rectified current and 50A forward current with a 65ns reverse recovery time. Designed for chassis mount applications, this module operates from -55°C to 150°C and offers a peak non-repetitive surge current of 750A. The component is RoHS compliant and packaged in a module format.
PackageModule
Capacitance45pF
Current Rating100A
MountingChassis Mount, Panel, Screw
Quick Jump:
Technical Specifications
Stmicroelectronics STTH10002TV2 technical specifications.
General
Average Rectified Current
50A
Capacitance
45pF
Package/Case
Module
Current Rating
100A
Forward Current
50A
Height
9.1mm
Lead Free
Lead Free
Length
38.2mm
Max Forward Surge Current (Ifsm)
750A
Max Operating Temperature
150°C
Min Operating Temperature
-55°C
Max Repetitive Reverse Voltage (Vrrm)
200V
Max Reverse Current
50uA
Max Reverse Voltage (DC)
200V
Max Surge Current
750A
Mount
Chassis Mount, Panel, Screw
Output Current
150A
Package Quantity
10
Packaging
Rail/Tube
Peak Non-Repetitive Surge Current
750A
Polarity
Standard
Radiation Hardening
No
Reach SVHC Compliant
No
Reverse Recovery Time
65ns
Reverse Recovery Time-Max
65ns
Reverse Voltage
200V
RoHS Compliant
Yes
DC Rated Voltage
200V
Width
25.5mm
Compliance
RoHS
Compliant
Datasheet
Stmicroelectronics STTH10002TV2 Datasheet
Download the complete datasheet for Stmicroelectronics STTH10002TV2 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

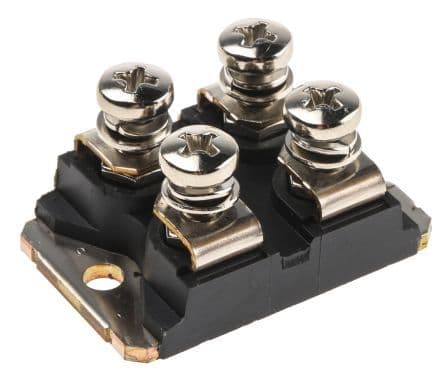

Product Images
