PackageTO-220AB
Current Rating10A
MountingThrough Hole
Quick Jump:
Technical Specifications
Stmicroelectronics STTH1002CT technical specifications.
General
Average Rectified Current
8A
Package/Case
TO-220AB
Current Rating
10A
Forward Current
5A
Lead Free
Lead Free
Max Forward Surge Current (Ifsm)
50A
Max Operating Temperature
175°C
Min Operating Temperature
-65°C
Max Repetitive Reverse Voltage (Vrrm)
200V
Max Reverse Current
5uA
Max Reverse Voltage (DC)
200V
Max Surge Current
50A
Mount
Through Hole
Package Quantity
50
Packaging
Rail/Tube
Peak Non-Repetitive Surge Current
50A
Radiation Hardening
No
Reach SVHC Compliant
No
Reverse Recovery Time
25ns
Reverse Recovery Time-Max
25ns
Reverse Voltage
200V
RoHS Compliant
Yes
DC Rated Voltage
200V
Compliance
RoHS
Compliant
Datasheet
Stmicroelectronics STTH1002CT Datasheet
Download the complete datasheet for Stmicroelectronics STTH1002CT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

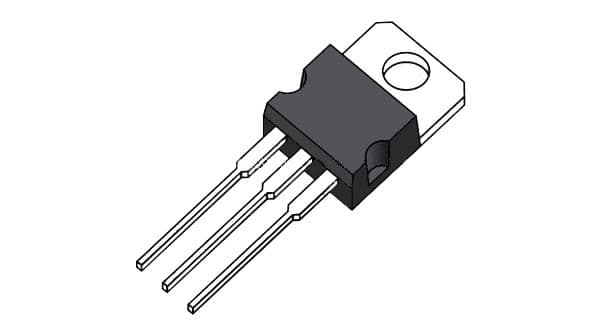

Product Images
