Ultrafast diode with 800V repetitive reverse voltage and 1A average rectified current. Features a 75ns reverse recovery time, 20A peak non-repetitive surge current, and a maximum operating temperature of 175°C. This surface mount component is housed in an SMA package, measuring 4.6mm in length, 2.95mm in width, and 2.03mm in height. RoHS compliant and lead-free.
PackageSMA
Current Rating1A
MountingSurface Mount
PolarityStandard
Quick Jump:
Technical Specifications
Stmicroelectronics STTH108A technical specifications.
General
Average Rectified Current
1A
Package/Case
SMA
Current Rating
1A
Forward Current
1A
Height
2.03mm
Lead Free
Lead Free
Length
4.6mm
Max Forward Surge Current (Ifsm)
20A
Max Operating Temperature
175°C
Min Operating Temperature
-50°C
Max Repetitive Reverse Voltage (Vrrm)
800V
Max Reverse Current
5uA
Max Reverse Voltage (DC)
800V
Max Surge Current
20A
Mount
Surface Mount
Output Current
1A
Package Quantity
1
Packaging
Tape and Reel
Peak Non-Repetitive Surge Current
20A
Polarity
Standard
Radiation Hardening
No
Reach SVHC Compliant
No
Reverse Recovery Time
75ns
Reverse Recovery Time-Max
75ns
Reverse Voltage
800V
RoHS Compliant
Yes
Termination
SMD/SMT
DC Rated Voltage
800V
Width
2.95mm
Compliance
RoHS
Compliant
Datasheet
Stmicroelectronics STTH108A Datasheet
Download the complete datasheet for Stmicroelectronics STTH108A to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

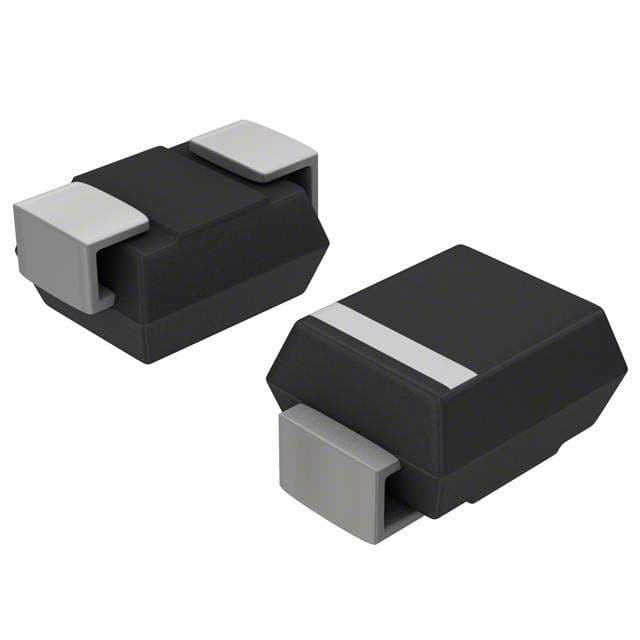

Product Images
