The STTH1R04U is a general purpose rectifier diode with a maximum operating temperature of 175°C and a minimum operating temperature of -65°C. It has a maximum repetitive reverse voltage of 400V and a maximum forward current of 1A. The diode is packaged in an SMB package and is surface mountable. It is lead free and RoHS compliant.
PackageSMB
MountingSurface Mount
Quick Jump:
Technical Specifications
Stmicroelectronics STTH1R04U technical specifications.
General
| Average Rectified Current | 1A |
| Package/Case | SMB |
| Forward Current | 1A |
| Lead Free | Lead Free |
| Max Forward Surge Current (Ifsm) | 30A |
| Max Operating Temperature | 175°C |
| Min Operating Temperature | -65°C |
| Max Repetitive Reverse Voltage (Vrrm) | 400V |
| Max Reverse Current | 5uA |
| Max Reverse Voltage (DC) | 400V |
| Max Surge Current | 30A |
| Mount | Surface Mount |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Peak Non-Repetitive Surge Current | 30A |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Reverse Recovery Time | 30ns |
| Reverse Voltage | 400V |
| RoHS Compliant | Yes |
Compliance
| RoHS | Compliant |
Datasheet
Stmicroelectronics STTH1R04U Datasheet
Download the complete datasheet for Stmicroelectronics STTH1R04U to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

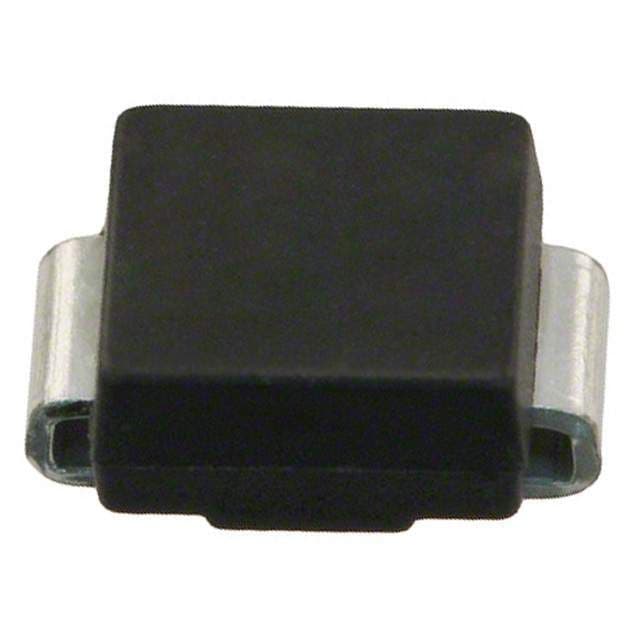

Product Images
