Technical Specifications
Stmicroelectronics STTH1R04UY technical specifications.
General
| Average Rectified Current | 1A |
| Package/Case | SMB |
| Forward Current | 1A |
| Max Operating Temperature | 175°C |
| Min Operating Temperature | -40°C |
| Max Repetitive Reverse Voltage (Vrrm) | 400V |
| Max Reverse Current | 5uA |
| Max Reverse Voltage (DC) | 400V |
| Max Surge Current | 30A |
| Mount | Surface Mount |
| Package Quantity | 2500 |
| Packaging | Tape and Reel |
| Peak Non-Repetitive Surge Current | 30A |
| Radiation Hardening | No |
| Reverse Recovery Time | 30ns |
| Reverse Voltage (DC) | 400V |
| RoHS Compliant | Yes |
| Weight | 0.00328oz |
Compliance
| RoHS | Compliant |
Datasheet
Stmicroelectronics STTH1R04UY Datasheet
Download the complete datasheet for Stmicroelectronics STTH1R04UY to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

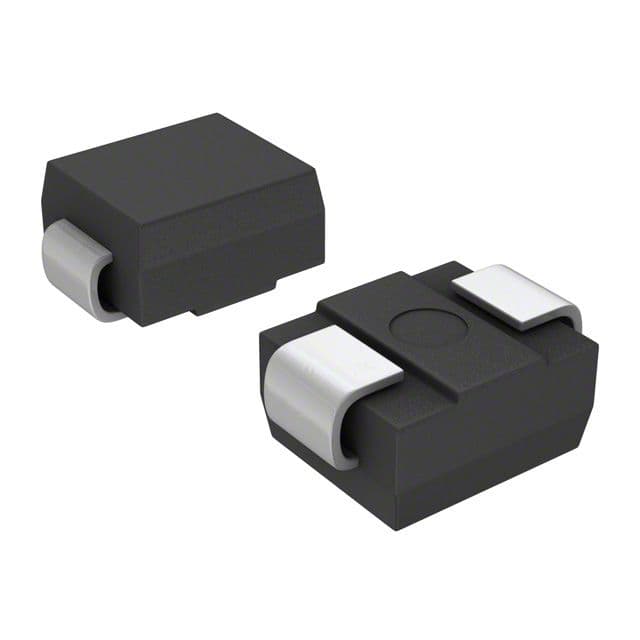

Product Images
