200V, 3A SMC Ultrafast Diode for general-purpose rectification. Features a 3A average rectified current and a 35ns reverse recovery time. With a maximum operating temperature of 175°C and a 100A surge current rating, this surface mount diode offers robust performance. The SMC package measures 7.15mm in length, 6.25mm in width, and 2.45mm in height.
PackageSMC
Current Rating3A
MountingSurface Mount, Stud
PolarityStandard
Quick Jump:
Technical Specifications
Stmicroelectronics STTH302S technical specifications.
General
| Average Rectified Current | 3A |
| Package/Case | SMC |
| Current Rating | 3A |
| Forward Current | 3A |
| Height | 2.45mm |
| Lead Free | Lead Free |
| Length | 7.15mm |
| Max Forward Surge Current (Ifsm) | 100A |
| Max Operating Temperature | 175°C |
| Min Operating Temperature | -65°C |
| Max Repetitive Reverse Voltage (Vrrm) | 200V |
| Max Reverse Current | 3uA |
| Max Reverse Voltage (DC) | 200V |
| Max Surge Current | 100A |
| Mount | Surface Mount, Stud |
| Output Current | 3A |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Peak Non-Repetitive Surge Current | 100A |
| Polarity | Standard |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Reverse Recovery Time | 35ns |
| Reverse Recovery Time-Max | 35ns |
| Reverse Voltage | 200V |
| RoHS Compliant | Yes |
| DC Rated Voltage | 200V |
| Width | 6.25mm |
Compliance
| RoHS | Compliant |
Datasheet
Stmicroelectronics STTH302S Datasheet
Download the complete datasheet for Stmicroelectronics STTH302S to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

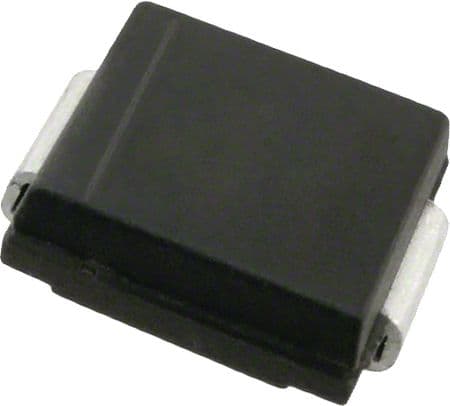

Product Images
