PackageDPAK
MountingSurface Mount
Quick Jump:
Technical Specifications
Stmicroelectronics STTH506B technical specifications.
General
Average Rectified Current
5A
Package/Case
DPAK
Forward Current
5A
Height
2.4mm
Length
6.6mm
Max Forward Surge Current (Ifsm)
55A
Max Operating Temperature
175°C
Min Operating Temperature
-65°C
Max Repetitive Reverse Voltage (Vrrm)
600V
Max Reverse Current
5uA
Max Reverse Voltage (DC)
600V
Max Surge Current
55A
Mount
Surface Mount
Package Quantity
75
Packaging
Rail/Tube
Peak Non-Repetitive Surge Current
55A
Reverse Recovery Time
50ns
Reverse Voltage
600V
RoHS Compliant
Yes
Width
6.2mm
Compliance
RoHS
Compliant
Datasheet
Stmicroelectronics STTH506B Datasheet
Download the complete datasheet for Stmicroelectronics STTH506B to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

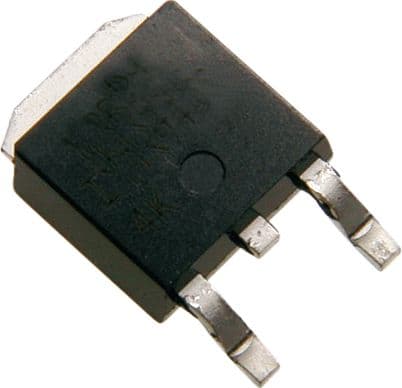

Product Images
