600V, 5A ultrafast general-purpose rectifier diode in a DPAK surface-mount package. Features a 5A average rectified current, 60A peak non-repetitive surge current, and a maximum reverse voltage of 600V. Operates across a wide temperature range from -65°C to 175°C with a low reverse recovery time of 95ns. RoHS compliant and lead-free.
PackageDPAK
Current Rating5A
MountingSurface Mount
PolarityStandard
Quick Jump:
Technical Specifications
Stmicroelectronics STTH5L06B-TR technical specifications.
General
| Average Rectified Current | 5A |
| Package/Case | DPAK |
| Current Rating | 5A |
| Forward Current | 5A |
| Height | 2.4mm |
| Lead Free | Lead Free |
| Length | 6.6mm |
| Max Forward Surge Current (Ifsm) | 65A |
| Max Operating Temperature | 175°C |
| Min Operating Temperature | -65°C |
| Max Repetitive Reverse Voltage (Vrrm) | 600V |
| Max Reverse Current | 5uA |
| Max Reverse Voltage (DC) | 600V |
| Max Surge Current | 60A |
| Mount | Surface Mount |
| Output Current | 5A |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Peak Non-Repetitive Surge Current | 60A |
| Polarity | Standard |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Reverse Recovery Time | 95ns |
| Reverse Recovery Time-Max | 95ns |
| Reverse Voltage | 600V |
| RoHS Compliant | Yes |
| DC Rated Voltage | 600V |
| Width | 6.2mm |
Compliance
| RoHS | Compliant |
Datasheet
Stmicroelectronics STTH5L06B-TR Datasheet
Download the complete datasheet for Stmicroelectronics STTH5L06B-TR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

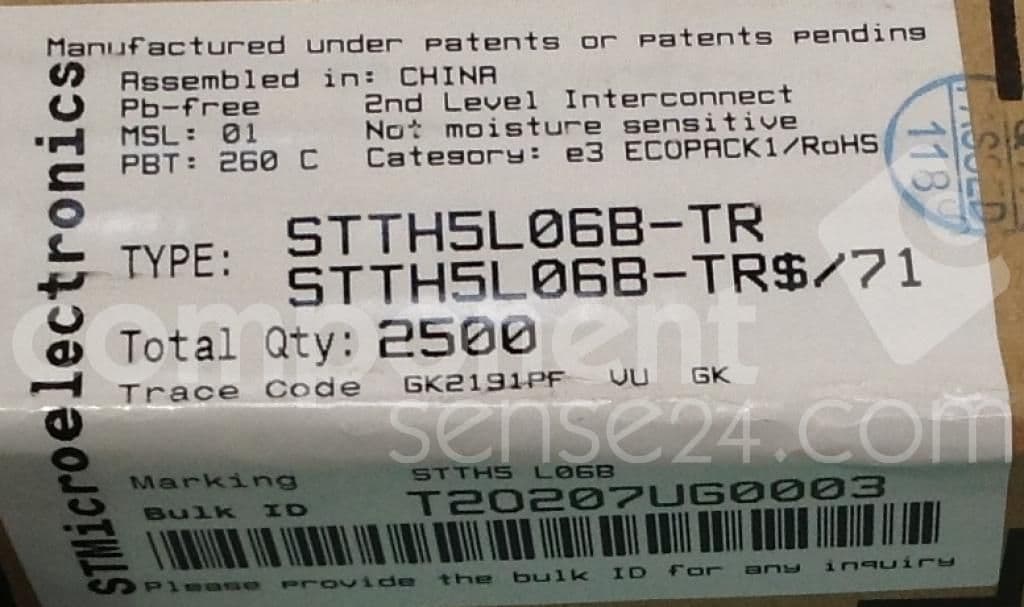

Product Images
