General purpose rectifier diode featuring a 600V repetitive reverse voltage and 5A average rectified current. This ultrafast diode offers a low forward voltage drop, a maximum forward surge current of 90A, and a reverse recovery time of 95ns. Housed in a TO-220-2 through-hole package, it operates across a wide temperature range from -65°C to 175°C. The component is RoHS compliant and lead-free.
PackageTO-220-2
Current Rating5A
MountingThrough Hole
PolarityStandard
Quick Jump:
Technical Specifications
Stmicroelectronics STTH5L06FP technical specifications.
General
Average Rectified Current
5A
Package/Case
TO-220-2
Current Rating
5A
Forward Current
5A
Height
9.3mm
Lead Free
Lead Free
Length
10.4mm
Max Forward Surge Current (Ifsm)
90A
Max Operating Temperature
175°C
Min Operating Temperature
-65°C
Max Repetitive Reverse Voltage (Vrrm)
600V
Max Reverse Current
5uA
Max Reverse Voltage (DC)
600V
Max Surge Current
90A
Mount
Through Hole
Output Current
5A
Package Quantity
1000
Packaging
Rail/Tube
Peak Non-Repetitive Surge Current
90A
Polarity
Standard
Radiation Hardening
No
Reach SVHC Compliant
No
Reverse Recovery Time
95ns
Reverse Recovery Time-Max
95ns
Reverse Voltage
600V
RoHS Compliant
Yes
DC Rated Voltage
600V
Width
4.6mm
Compliance
RoHS
Compliant
Datasheet
Stmicroelectronics STTH5L06FP Datasheet
Download the complete datasheet for Stmicroelectronics STTH5L06FP to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

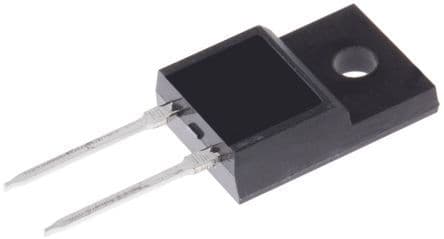

Product Images
