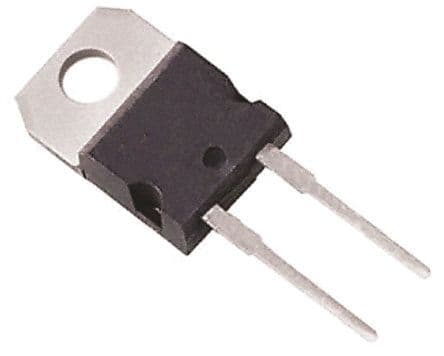

Ultrafast rectifier diode with 600V repetitive reverse voltage and 5A average rectified current. Features a 40ns reverse recovery time and a 50A maximum forward surge current. Packaged in a TO-220AC through-hole mount with a maximum operating temperature of 175°C. This RoHS compliant component offers standard polarity and a maximum reverse current of 20uA.
PackageTO-220AC
Current Rating5A
MountingThrough Hole
PolarityStandard
Quick Jump:
Technical Specifications
Stmicroelectronics STTH5R06D technical specifications.
General
Average Rectified Current
5A
Package/Case
TO-220AC
Current Rating
5A
Forward Current
5A
Height
15.75mm
Lead Free
Lead Free
Length
10.4mm
Max Forward Surge Current (Ifsm)
50A
Max Operating Temperature
175°C
Min Operating Temperature
-65°C
Max Repetitive Reverse Voltage (Vrrm)
600V
Max Reverse Current
20uA
Max Reverse Voltage (DC)
600V
Max Surge Current
50A
Mount
Through Hole
Output Current
5A
Package Quantity
50
Packaging
Rail/Tube
Peak Non-Repetitive Surge Current
50A
Polarity
Standard
Reach SVHC Compliant
No
Reverse Recovery Time
40ns
Reverse Recovery Time-Max
40ns
Reverse Voltage
600V
RoHS Compliant
Yes
DC Rated Voltage
600V
Width
4.6mm
Compliance
RoHS
Compliant
