Ultrafast rectifier diode with a 600V repetitive reverse voltage and 5A average rectified current. Features a 40ns reverse recovery time and a 50A maximum forward surge current. Packaged in a TO-220-2 case for through-hole mounting, operating from -65°C to 175°C. This lead-free, RoHS compliant component offers a maximum reverse current of 20uA.
PackageTO-220-2
Current Rating5A
MountingThrough Hole
PolarityStandard
Quick Jump:
Technical Specifications
Stmicroelectronics STTH5R06FP technical specifications.
General
Average Rectified Current
5A
Package/Case
TO-220-2
Current Rating
5A
Forward Current
5A
Height
9.3mm
Lead Free
Lead Free
Length
10.4mm
Max Forward Surge Current (Ifsm)
50A
Max Operating Temperature
175°C
Min Operating Temperature
-65°C
Max Repetitive Reverse Voltage (Vrrm)
600V
Max Reverse Current
20uA
Max Reverse Voltage (DC)
600V
Max Surge Current
50A
Mount
Through Hole
Output Current
5A
Package Quantity
50
Packaging
Rail/Tube
Peak Non-Repetitive Surge Current
50A
Polarity
Standard
Radiation Hardening
No
Reverse Recovery Time
40ns
Reverse Recovery Time-Max
40ns
Reverse Voltage
600V
RoHS Compliant
Yes
DC Rated Voltage
600V
Width
4.6mm
Compliance
RoHS
Compliant
Datasheet
Stmicroelectronics STTH5R06FP Datasheet
Download the complete datasheet for Stmicroelectronics STTH5R06FP to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

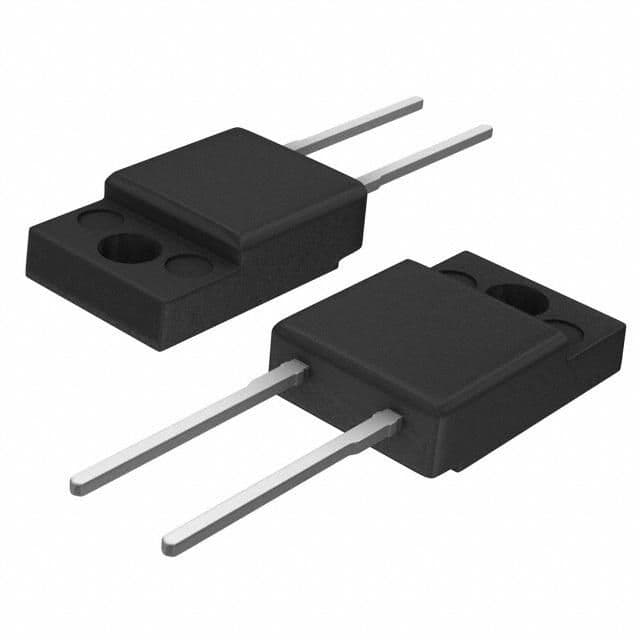

Product Images
