Ultrafast diode with 8A average rectified current and 1kV repetitive reverse voltage. Features 85ns reverse recovery time, 60A surge current capability, and 7pF capacitance. Packaged in TO-220AC for through-hole and surface mount applications, operating from -65°C to 175°C. RoHS compliant and lead-free.
PackageTO-220AC
Capacitance7pF
Current Rating8A
MountingThrough Hole, Surface Mount
Quick Jump:
Technical Specifications
Stmicroelectronics STTH810D technical specifications.
General
Average Rectified Current
8A
Capacitance
7pF
Package/Case
TO-220AC
Current Rating
8A
Forward Current
8A
Height
9.35mm
Lead Free
Lead Free
Length
10.4mm
Max Forward Surge Current (Ifsm)
60A
Max Operating Temperature
175°C
Min Operating Temperature
-65°C
Max Repetitive Reverse Voltage (Vrrm)
1kV
Max Reverse Current
5uA
Max Reverse Voltage (DC)
1kV
Max Surge Current
60A
Mount
Through Hole, Surface Mount
Output Current
8A
Package Quantity
50
Packaging
Rail/Tube
Peak Non-Repetitive Surge Current
60A
Polarity
Standard
Reach SVHC Compliant
No
Reverse Recovery Time
85ns
Reverse Recovery Time-Max
85ns
Reverse Voltage
100V
RoHS Compliant
Yes
DC Rated Voltage
1kV
Width
4.6mm
Compliance
RoHS
Compliant
Datasheet
Stmicroelectronics STTH810D Datasheet
Download the complete datasheet for Stmicroelectronics STTH810D to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

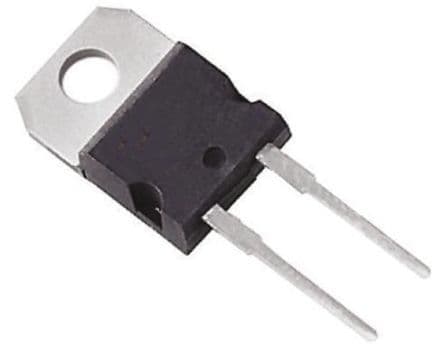

Product Images
