Ultrafast rectifier diode with 600V repetitive reverse voltage and 8A average rectified current. Features a low forward voltage drop and a maximum forward surge current of 120A. Operates across a wide temperature range from -40°C to 175°C. Packaged in a TO-220AC through-hole mount with a 105ns reverse recovery time. RoHS compliant and lead-free.
PackageTO-220AC
Current Rating8A
MountingThrough Hole
PolarityStandard
Quick Jump:
Technical Specifications
Stmicroelectronics STTH8L06D technical specifications.
General
Average Rectified Current
8A
Package/Case
TO-220AC
Current Rating
8A
Forward Current
8A
Height
9.3mm
Lead Free
Lead Free
Length
10.4mm
Max Forward Surge Current (Ifsm)
120A
Max Operating Temperature
175°C
Min Operating Temperature
-40°C
Max Repetitive Reverse Voltage (Vrrm)
600V
Max Reverse Current
8uA
Max Reverse Voltage (DC)
600V
Max Surge Current
120A
Mount
Through Hole
Output Current
8A
Package Quantity
1000
Packaging
Rail/Tube
Peak Non-Repetitive Surge Current
120A
Polarity
Standard
Radiation Hardening
No
Reach SVHC Compliant
No
Reverse Recovery Time
105ns
Reverse Recovery Time-Max
105ns
Reverse Voltage
600V
RoHS Compliant
Yes
DC Rated Voltage
600V
Width
4.6mm
Compliance
RoHS
Compliant
Datasheet
Stmicroelectronics STTH8L06D Datasheet
Download the complete datasheet for Stmicroelectronics STTH8L06D to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

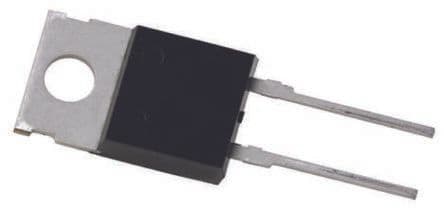

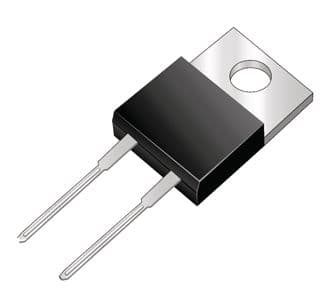

Product Images
