Low-voltage local digital temperature sensor with I2C, SMBus, and 2-Wire serial interface. Features a 12-bit resolution and operates across a -40°C to 125°C temperature range. Surface mount device with a 2V to 3.6V supply voltage range and 50µA operating current. Lead-free and RoHS compliant, packaged on tape and reel.
MountingSurface Mount
Quick Jump:
Technical Specifications
Stmicroelectronics STTS751-1DP3F technical specifications.
General
Interface
I2C, SMBus, 2-Wire, Serial
Lead Free
Lead Free
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
20mA
Max Supply Voltage (DC)
3.6V
Min Supply Voltage (DC)
2V
Max Supply Voltage
3.6V
Min Supply Voltage
2.25V
Mount
Surface Mount
Operating Supply Current
50uA
Output Current
20mA
Output Type
Digital
Package Quantity
3000
Packaging
Tape and Reel
Resolution
12b
RoHS Compliant
Yes
Compliance
RoHS
Compliant
Datasheet
Stmicroelectronics STTS751-1DP3F Datasheet
Download the complete datasheet for Stmicroelectronics STTS751-1DP3F to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

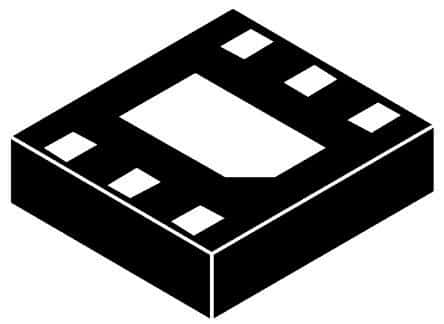

Product Images
